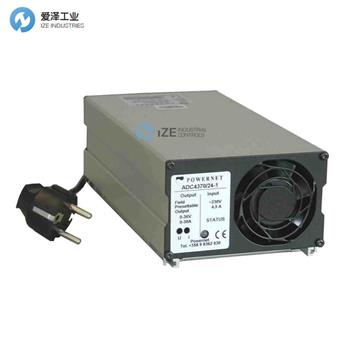

POWERNET電源ADC4370系列技術參數
Input voltage | 55…264 VAC (55…200VAC reduced power, see curve below) |
Input current | 4.5A |
Power factor | >0.99 |
Efficiency (230VAC, 10... 100% load) | 85...90% |
Inrush current | <30A, limited by NTC resistor |
Input fuse (inside the unit) | 6.3A |
Line regulation | 士0.1% |
Load regulation | 土0.5% |
Output setting accuracy | 士0.1% |
Output ripple (f> 50H2) | <50mVrms |
Hold up time | > 5ms |
Status LED indication | Orange Power OK LED |
Isolations | Input - chassis 1500VAC |
Standards | Safety EN60950-1:2005, EN60335-2-29:2004 +A2:2010. |
Approvals | CE marking all models |
Protection class | Mechanical IP20 metal enclosure |
Dimensions | l x w x h 220 x 112 x 73 mm |
Weight | 1,5kg |
Mounting | DIN-rail, wall, bench |
Connectors | Input Power cord 1 .5m |
Cooling | Temperature controlled fan |
Operating temperature range | Full power typically -25°C...+50°C |
POWERNET電源ADC4370系列介紹
寬輸出調節范圍 0…144VDC
通過外部 0-5VDC 電壓進行模擬控制
Temp.comp 充電，感應作為選項
斷電繼電器報警
主從連接
Wide output adjustment range 0…144VDC
Analog control by external 0-5VDC voltage
Temp.comp charging, sense as on option
Power fail relay alarm
Master-Slave connection
POWERNET電源ADC4370系列其他常用型號：
POWERNET ADC4370/12
POWERNET ADC4370/24
POWERNET ADC4370/36
POWERNET ADC4370/48
POWERNET ADC4370/72
POWERNET ADC4370/96
POWERNET ADC4370/12AI
POWERNET ADC4370/24AI
POWERNET ADC4370/36AI
POWERNET ADC4370/48AI
POWERNET ADC4370/72AI
POWERNET ADC4370/96AI
POWERNET ADC4370/12T
POWERNET ADC4370/24T
POWERNET ADC4370/36T
POWERNET ADC4370/48T
POWERNET ADC4370/72T
POWERNET ADC4370/96T
POWERNET ADC4370/24-3
