THERMO RAMSEY控制器60-200-DC技術參數
Specifications | |
Input Power Voltage | 85 to 250 VAC (50/60 Hz) |
Operating Temperature | -40°C to +85°C (-40°F to +185°F |
Alarm Outputs | Two independently adjustable alarms with (1) DPDT relay per alarm |
Sensor Input | NPN, PNP, or Namur |
Supply Voltage to Sensor | 12 VDC, 150 mA |
THERMO RAMSEY控制器60-200系列介紹

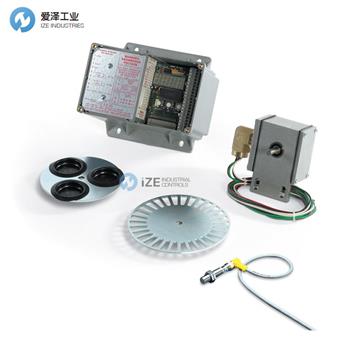

Ramsey 60-200型可編程運動監視器控制器是一種靈活的基于微處理器的控制器，可與任何Thermo Scientific傳感器一起使用，在某些情況下，還可與其他來源的兼容脈沖輸出傳感器一起使用。
所有報警功能、延遲和操作參數都通過一個簡單的三鍵鍵盤輸入。無需調節電位器。四位七段顯示器以相對于用戶編程參考速度的百分比形式顯示當前速度。當控制器處于設置模式時，它還顯示各種參數和設置值。最后，如果出現任何問題，顯示屏?xí)@示錯誤代碼。這有助于操作員排除系統故障或其他困難。
Ramsey 60-200型有兩種版本，單通道或雙通道。單通道型號的警報可以在參考速度的0%到160%的范圍內以1%的增量設置，以提供低速或超速警報。雙通道型號有兩個獨立的警報，每個警報可在0%到160%之間調節。
The Ramsey Model 60-200 programmable motion monitor control is a flexible microprocessor-based controller that can be used with any Thermo Scientific sensor and, in some cases, with compatible pulse output sensors from other sources.
All alarm functions, delays and operating parameters are entered via a simple three-button keyboard. There are no potentiometers to adjust. A four-digit, seven-segment display shows the current speed as a percentage relative to a user-programmed reference speed.It also displays various parameters and setup values when the control is in its setup mode. Finally, the display shows an error code if any problems occur. This helps the operator to troubleshoot system failures or other difficulties.
The Ramsey Model 60-200 is available in two versions, a single channel or a dual channel. The alarm on a single channel model can be set at 1% increments over a range of 0% to 160% of the reference speed to provide an under-speed or an over-speed alarm.The dual channel model has two independent alarms, each adjustable between 0% to 160%.
THERMO RAMSEY控制器60系列其他常用型號：
THERMO RAMSEY 60-200-SC
THERMO RAMSEY 60-200-DC
THERMO RAMSEY 60-22
THERMO RAMSEY 60-24H
THERMO RAMSEY 60-24L
THERMO RAMSEY 60-24VL
