FTCAP電容COAX CAP系列技術參數
GENERAL SPECIFICATIONS | |
Items | Characteristics |
Capacitance range | 20 μF … 830 μF |
Rated voltage DC | 600 Vdc ... 1900 Vdc |
Available tolerance | ± 5 % (J) ± 10 % (K) |
Rated RMS current @ 30 °C | max. 100 Arms |
Operating temperature range | -40 °C … +105 °C |
Climatic category DIN IEC 68/1 | 40/105/21 |
Terminals | M6 female or M8 male, others on request |
Inductance | <10,5 nH |
Lifetime | 200 000h |

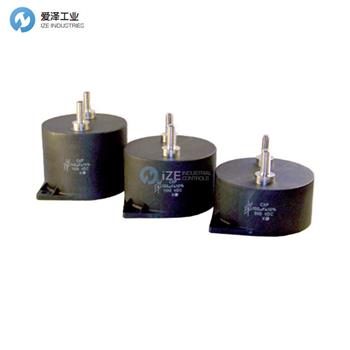

FTCAP電容COAX CAP系列介紹
特征
?溫度范圍-40°C至85°C
?適用于高占空比和高電流
?通過實現平整的底面來優化底面冷卻
?自愈PP電介質
?極低的電感
應用領域
?大功率
?中高頻
?電力電子
FEATURES
? Temperature range -40 °C to 85 °C
? Usable in high duty cycles with higher currents
? Optimized bottom side cooling by achieving plain bottom surface
? Self-healing PP dielectric
? Very low inductance
APPLICATIONS
? High power
? Medium-high frequency
? Power electronics

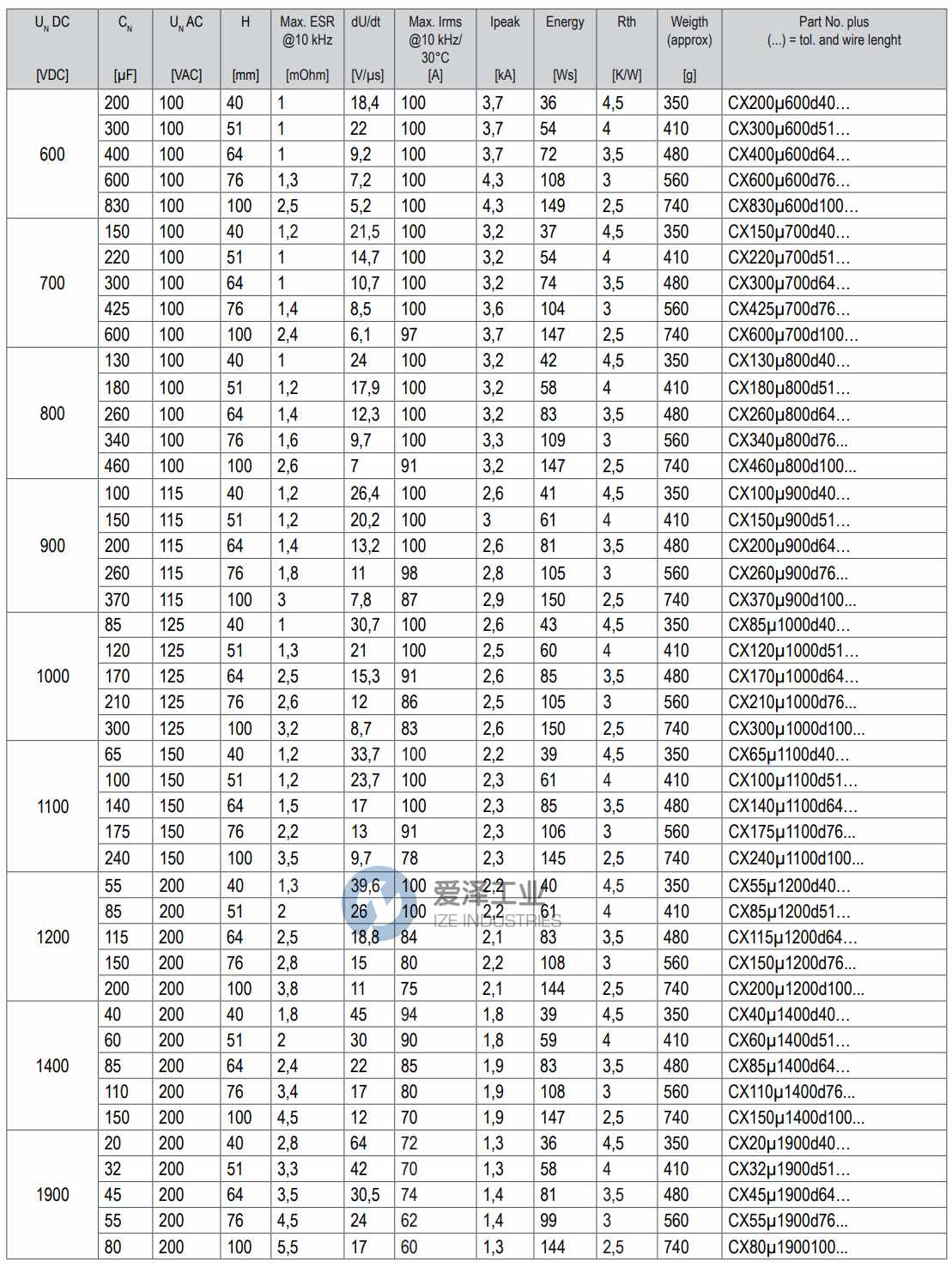

FTCAP電容COAX CAP系列選型
FTCAP電容COAX CAP系列其他常用型號：
FTCAP CX65μ1100d40
FTCAP CX100μ1100d51
FTCAP CX140μ1100d64
FTCAP CX55μ1200d40
FTCAP CX85μ1200d51
FTCAP CX115μ1200d64
FTCAP CX40μ1400d40
FTCAP CX60μ1400d51
FTCAP CX85μ1400d64
FTCAP CX20μ1900d40
FTCAP CX32μ1900d51
FTCAP CX45μ1900d64
FTCAP CAPACITANCE NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業成立于2010年，定位于向先進制造工業提供高端制造技術和設備。代理經營世界先進的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于FTCAP電容CX85μ1400d64的疑問，請隨時與我們溝通（021-31006702）。我們將盡全力解決您的問題。
If you have any question for FTCAP products, please feel free to dial 0086-21-3100 6702/ send request email to sales@ize-industries.com / browse our website: jjxdch.cn.
FTCAP電容COAX CAP系列CX85μ1400d64介紹及選型
