Introduction to SEW inverter MCH41A series
The MOVIDRIVER compact is the term for SEW compact high performance drive inverter s. The MOVIDRIVE R compact unit can be precisely tailored to your requirements. You can use them for AC drives with a power range of 1.5 to 90 kW (2.0 to 120 HP). They combine state-of-the-art inverter technology with proven SEW control processes to meet the most stringent requirements for dynamics and quality control.
The MOVIDRIVE compact range consists of four series:
MOVIDRIVE compact MCF: inverter for asynchronous AC motors, encoderless feedback, VFC control mode
MOVIDRIVE compact MCV: Drive inverter for asynchronous AC motors with encoder feedback, VFC or CFC control mode.
MOVIDRIVE compact MCS: Synchronous servo motor drive inverter with resolver, CFC control mode.
MOVIDRIVE compact MCH: inverter for asynchronous AC motors, asynchronous servo motors or synchronous servo motors. Encoder feedback with a Hiperface encoder, sine/cosine encoder or T TL sensor.
SEW inverter technical information

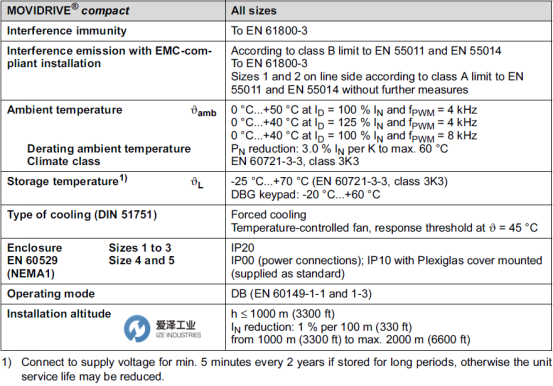

SEW inverter MCH41A series technical information

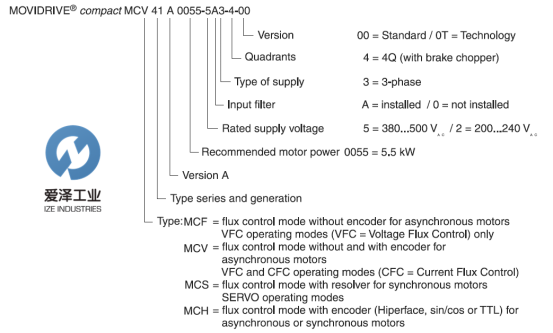

CE mark, UL certification and unit designation
CE mark
? Low voltage command
The MOVIDRIVE @ compact drive inverter complies with the requirements of the Low Voltage Directive 73/23 / EEC.
? Electromagnetic compatibility (EMC)
The MOVIDRIVE @ compact drive inverter is designed for installation in machinery and equipment. They comply with the EMC product standard EN 61800-3 'Variable Electric Drives'. If the installation instructions are met, they will meet the corresponding requirements for the CE marking of the entire machine/system in which they are installed in accordance with EMC Directive 89/336 / EEC.
MOVIDRIVE @ compact drive inverter s of sizes 1 and 2 come standard with an input filter. These devices comply with the limits A of EN 55011 and EN 55014 and no further action is required.
The CE mark on the nameplate indicates compliance with the Low Voltage Directive 73/23 / EEC and the EMC Directive 89/336 / EEC. We can issue a statement that meets this effect on request.
SEW inverter MCH41A series features
? Wide voltage range
-400/500 V units, voltage range 3 x 380 500 VAC
-230 V units, voltage range 3 x 200 240 VAC
? High overload capability
-150% short-term operation
-125% IN continues to operate without overload (pump, fan)
? In VFC mode, IN = 100% allows ambient temperature up to = 500 °C
? Integrated brake chopper as standard with 4Q function
? Compact unit mounting position, minimizing switch cabinet space requirements and optimal use of switch cabinet volume
? Integrated input filter as standard size 1 and 2 mounting with Class A limits on the input side without any additional measures
? Six isolated binary inputs and three binary outputs, one of which is a relay output, programmable input/output
? A TF / TH input for motor protection, including PTC thermistors or thermal contact tri-color LEDs for display operation and fault conditions.
? Separate 24 VDC voltage input for powering the inverter electronics (even if the power system is off, parameter setting, diagnostics and data storage)
? Detachable connection unit, and MOVIDRIVE compact MCH4_A, detachable electronics terminal
? Can disconnect 1 unit power terminal

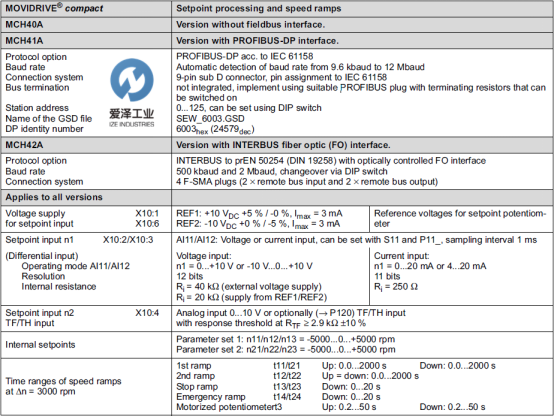

SEW inverter MCH41A series selection reference

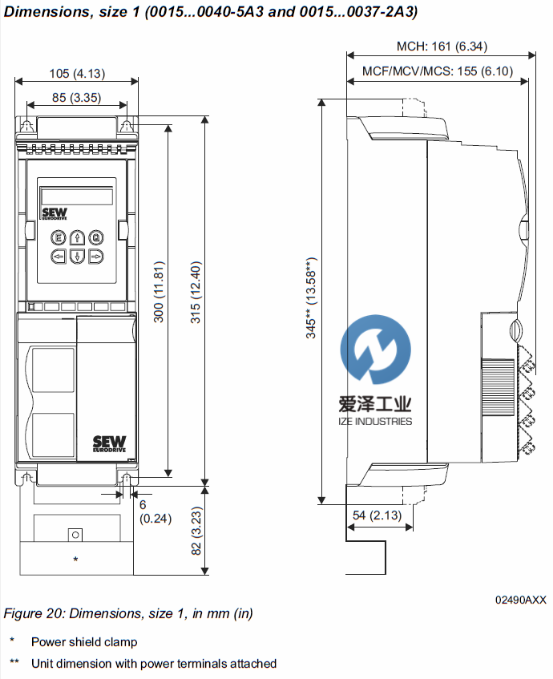

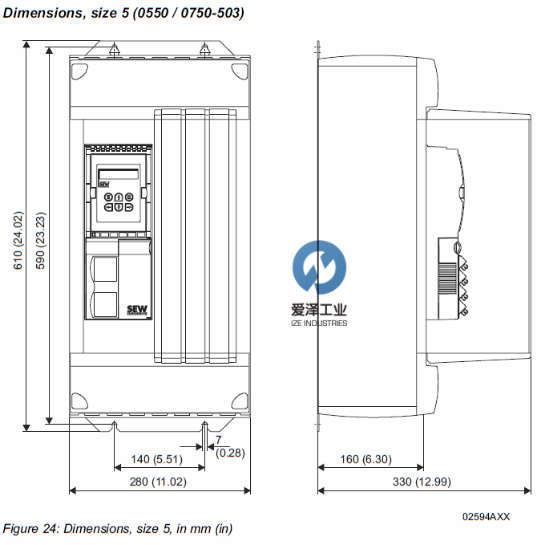

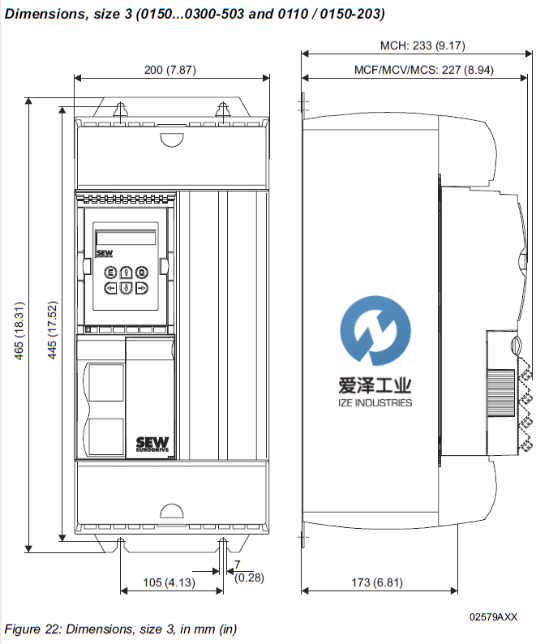

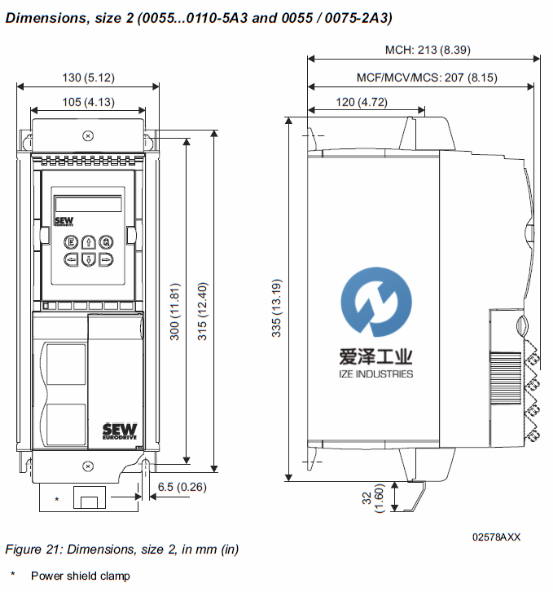

SEW inverter MCH41A series size

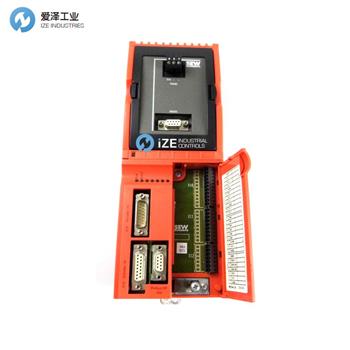

SEW inverter MCH41A series
IZE INDUSTRIES special distribution, common spare parts SEW encoder series list:
SEW inverter MCH41A0110-5A3-4-00
SEW inverter MCH42A0110-5A3-4-0T
SEW inverter MCH42A0040-5A3-4-0T
SEW inverter MCH41A0030-5A3-4-0T
SEW inverter MCH42A0030-5A3-4-0T
SEW inverter MCH42A0300-503-4-0T
SEW inverter MCH41A0030-5A3-4-00
SEW inverter MCH41A0015-5A3-4-0T
SEW inverter MCH41A0015-5A3-4-0T
SEW inverter MCH42A0015-5A3-4-0T
SEW inverter MCH41A0015-5A3-4-0T
SEW inverter MCH41A0300-503-4-00
SEW inverter MCH41A0015-5A3-4-0T
SEW inverter MCH42A0030-5A3-4-0T
SEW inverter MCH42A0040-5A3-4-0T
SEW inverter MCH41A0015-5A3-4-0T
SEW inverter MCH41A0150-503-4-0T
SEW inverter MCH42A0150-503-4-0T
SEW inverter MCH41A0015-5A3-4-0T
SEW inverter MCH41A0110-5A3-4-0T
SEW inverter MCH42A0040-5A3-4-0T
SEW inverter MCH42A0220-5A3-4-0T
SEW inverter MCH42A0040-5A3-4-0T
SEW inverter MCH42A0015-5A3-4-0T
SEW inverter MCH42A0015-5A3-4-0T
SEW inverter MCH42A0075-5A3-4-0T
SEW inverter MCH42A0075-5A3-4-0T
SEW inverter MCH42A0110-5A3-4-0T
SEW inverter MCH42A0150-503-4-0T
SEW inverter MCH41A0015-5A3-4-0T
SEW inverter MCH42A0110-5A3-4-0T
SEW inverter MCH40A0040-5A3-4-0C
SEW inverter MCH42A0040-5A3-4-0T
SEW inverter MCH41A0370-503-4-00
SEW inverter MCH41A0370-503-4-00
SEW inverter MCH41A0370-503-4-00
SEW inverter MCH41A0370-503-4-00
SEW inverter MCH41A0370-503-4-00
SEW inverter MCH41A0055-5A3-4-0T
SEW inverter MCH41A0022-5A3-4-0T
Who we are
IZE-industries was established in 2010.With its many years of professional experience, providing advanced manufacturing industries technology and equipment. Including advanced electrical automation, machinery and transmission, fluid control, instrumentation, tools and other products. As a partner in electrical, hydraulic and pneumatic solutions, we also provide our customers with consulting solutions, market knowledge, and value-added services.
What we offer
Engineering and Consulting
Full-service controls engineering and consulting solutions for industrial
manufacturing equipment, including:
Electrical design
PLC programming and repair
Process optimization
Down-time consultation
spare parts from the areas, including:
Hydraulic, Pneumatic, Industrial, Automation technology.
Please contact us for complete stock list or special discount.
If you have any question for SEW inverter MCH41A series, please feel free to dial 0086-21-3100 6702 or browse our website: jjxdch.cn.
For more detailed information on the SEW inverter MCH41A series or to purchase SEW related products, please contact IZE Industries.
