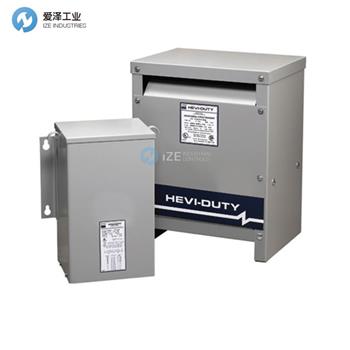

SOLAHD變壓器DT系列規格描述
Specifications | |
Group 1 | 460 ? Primary, 460Y/266 Secondary 60 Hz; kVA: 7.5, 11, 14, 20, 27, 34, 40, 51, 63, 75, 93, 118, 145, 175, 220, 275, 330, 440; Drive Horse Power: 5, 7.5, 10, 15, 20, 25, 30, 40, 50, 60, 75, 100, 125, 150, 200, 250, 300, 400 |
Group 2 | 460 ? Primary, 230Y/133 Secondary 60 Hz; kVA: 7.5, 11, 14, 20, 27, 34, 40, 51, 63, 75, 93, 118, 145, 175, 220, 275, 330, 440; Drive Horse Power: 5, 7.5, 10, 15, 20, 25, 30, 40, 50, 60, 75, 100, 125, 150, 200, 250, 300, 400 |
Group 3 | 575 ? Primary, 230Y/133 Secondary 60 Hz; kVA: 7.5, 11, 14, 20, 27, 34, 40, 51, 63, 75, 93, 118, 145, 175, 220, 275, 330, 440; Drive Horse Power: 5, 7.5, 10, 15, 20, 25, 30, 40, 50, 60, 75, 100, 125, 150, 200, 250, 300, 400 |
Hertz | 60 Hz |
Input Voltage Range | 460-575 Vac |
KVA Rating | 7.5-440 kVA |
Number of Phases | Three Phase |
Output Voltage Range | 133-460 Vac |
Temperature Rise | +150°C |
Windings | Aluminum |
SOLAHD變壓器DT系列介紹
Features
UL, cULus
Available from 7.5 thru 440 kVA, 3 Phase, 60 Hz
Isolation minimizes load disturbances caused by the SCR drive
UL Listed/NEMA Type 3R enclosures when used with optional weather shield
Taps on all units for adjustments to incoming source voltage. Full capacity secondary neutral as required by the National Electric Code
Shielding attenuates line to ground noise
特征
UL，cULus
在7.5至440 kVA，三相，60 Hz范圍內可用
隔離可將SCR驅動器引起的負載干擾降至最低
與可選的防風雨罩一起使用時，獲得UL認證/ NEMA 3R類型的外殼
輕按所有設備上的，以調節輸入電源電壓。國家電氣法規要求的滿負荷二次中線
屏蔽可削弱線對地噪聲
SOLAHD變壓器其他常用型號：
SOLAHD DT651H220S
SOLAHD DT651H93S
SOLAHD DT651H63S
