ELB繼電器ER-144A系列 示例ER-144-A-6002E簡介
ER-144A / Ex電極繼電器適用于通過導電電極檢測導電液體的上限值和監測冷凝水傳感器。
當電極浸沒在導電液體中時，取決于液體電導的測量電流在傳感器的電路中流動。如果該測量電流超過由電位計調節的極限值（即電阻變?。?，則電極繼電器將輸出觸點改變到冷凝物接觸位置。
同時（對于帶按鈕的型號），會激活內部停止功能，以保存此警報消息。直到較低的測量電流值不足并且按下設備上的RESET按鈕，電極繼電器才會返回READY狀態。
ER-144A / Ex電極繼電器在閉路電路運行中運行（見2.3）。輸出觸點的報警位置對應于處于無電壓狀態/超過可調節測量電流值（電導）/傳感器斷開的設備的報警位置
鉛。在READY狀態下，輸出觸點已經改變到相應的對應位置（拾取內部繼電器）。
要監控傳感器和電極繼電器之間的信號線，需要一個100kΩ的1％/ 0.25 W電阻器，否則電極繼電器將變?yōu)殡娎|中斷位置。
在進行ER-144A / Ex的任何組裝，安裝，操作檢查或維護時，請遵守相關標準！
The ER-144A/Ex Electrode Relay is suited for detecting the upper limit values of conductive liquids by means of a conductive electrode and/orfor monitoring condensate sensors.
When the electrode is submerged in a conductive liquid, a measurement current dependent on the electric conductance of the liquid flows in the sensor's electric circuit. If this measurement current exceeds a limit value adjusted by a potentiometer(i.e. the resistance becomes less), the electrode relay will change the output contacts over to the Condensate contact position.
At the same time (for the model with a pushbutton), an internal stopping function is activated that saves this alarm message. Not until the lower measurement current value is fallen short of and the RESET button on the device is pushed willthe electroderelay go back into READY status.
The ER-144A/Ex Electrode Relay operates in closedcircuit operation (see under 2.3). The alarm positions of the output contacts correspond to those of the device in a novoltage state / exceeding the adjustable measurement current value (electric conductance) / disconnection of the sensor
lead. In the READY status,the output contacts have changed overtotherespective correspondingcounter-position(internalrelay picked up).
To monitor the signal line between the sensor and the electrode relay, a 100-k? 1%/ 0.25-W resistor is necessary, without which the electroderelay will change into the Cable disruption position.
Observe the relevant standards when carrying out any assembly, installation, operational checks or maintenance of the ER-144A/Ex!

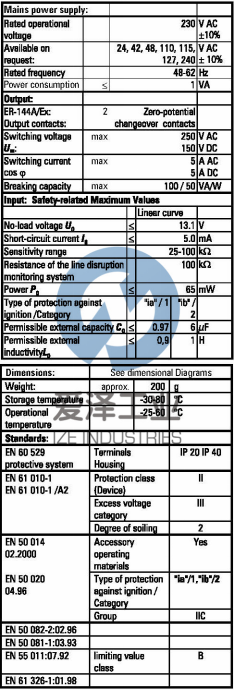

ELB繼電器ER-144A系列 示例ER-144-A-6002E技術資料

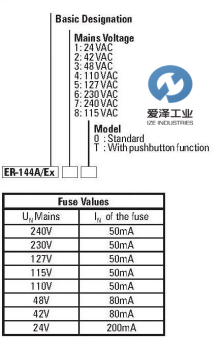

ELB繼電器ER-144-A系列選型參考
ELB繼電器ER-144A系列 示例ER-144-A-6002E
愛澤工業(IZE INDUSTRIES)特價經銷、常用備件ELB繼電器系列列表：
ELB繼電器ER-144A/Ex1O
ELB繼電器ER-144A/Ex1T
ELB繼電器ER-144A/Ex2O
ELB繼電器ER-144A/Ex2T
ELB繼電器ER-144A/Ex3O
ELB繼電器ER-144A/Ex3T
ELB繼電器ER-144A/Ex4O
ELB繼電器ER-144A/Ex4T
ELB繼電器ER-144A/Ex5O
ELB繼電器ER-144A/Ex5T
ELB繼電器ER-144A/Ex6O
ELB繼電器ER-144A/Ex6T
ELB繼電器ER-144A/Ex7O
ELB繼電器ER-144A/Ex7T
ELB繼電器ER-144A/Ex8O
ELB繼電器ER-144A/Ex8T
ELB繼電器ER-144/A-EX
ELB繼電器ER-144-A-016T
ELB繼電器ER-144-A-016Te
ELB繼電器ER-144-A-6002E
愛澤工業成立于2010年，定位于向先進制造工業提供高端制造技術和設備。代理經營世界先進的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于ELB繼電器ER-144A系列 示例ER-144-A-6002E的疑問，請隨時與我們聯系（021-31006702）。我們將盡全力解決您的問題。
有關ELB繼電器ER-144A系列 示例ER-144-A-6002E更詳細的信息或者購買ELB相關產品，請聯系愛澤工業。
If you have any question, please feel free to dial 0086-21-3100 6702 or browse our website: jjxdch.cn.
ELB繼電器ER-144-A系列簡介及技術資料
