OBZOR開關VSR10規格描述
Type range | VSN 10 | VSN 16 | VSN 20 | |
VSR 10 | VSR 16 | VSR 20 | ||
Impuls withstand voltage (Uimp) | 4 kV | 4 kV | 4 kV | |
Visolation voltage (Ui) | 690 V | 690 V | 690 V | |
Thermal current without cover (Ith) | 15 A | 20 A | 25 A | |
10 A | 16 A | 20 A | ||
Thermal current with cover (Ithe) | 10 A | 16 A | 20 A | |
Nominal on-load voltage (Ue) | 400/500 V AC | |||
Working current (Ie) | AC21 | 10 A | 16 A | 20 A |
AC 23 | 10 A | 16 A | 20 A | |
AC 3 | 8 A | 12 A | 14 A | |
Short-circuit switching capacity (Icm) | 200 A | 230 A | 280 A | |
Short-term withstand current (Icw / 1s) | 300 A | 400 A | 500 A | |
Working frequency | 50 Hz | |||
Conductor diameter in mm (under the screw), only for Copper conductors | 1 - 4 mm2 | |||
Maximum number of switching positions | 12 | |||
Maximum number of levels | 12 | |||
Maximum number of contacts | 24 | |||
Control shaft size | 5 x 5 mm | |||
Electrical endurance in AC3 and AC23 classes acc. to CSN EN 60947-3 (number of cycles) | 150 000 for AC23 | 100 000 for AC23 | 80 000 for AC23 | |
100 000 for AC3 | 70 000 for AC3 | 50 000 for AC3 | ||
Mechanical endurance (number of cycles) | 250 000 | 250 000 | 250 000 | |
Protection | of cam switch | IP 20 | ||
From Front | IP 65 | |||
Maximum switching frequency / h | 900 | |||
Weather resistance | - 40 / +55 °C | |||
Mounting position | any | |||
Connection screw | torx Nr.15 | |||
Maximum tightening torque | 1 Nm | |||
Dimensions | 43 x 43 mm | |||
Front mounting pitch | 30 mm | |||
Max. length of conductor stripping | 10 mm | |||
OBZOR開關VSR10產品介紹
與之前的VS系列相比，VSN和VSR產品系列提供：
電流范圍更廣
新型背面安裝面板，允許使用螺釘和一個德國工業標準板條安裝開關
較高的標稱電壓和電流值
較高的機械和電氣耐久性值
IP20作為連接端子的標準保護，前端IP65
控制元件、前面板和新保護蓋的現代設計
方形開關本體（原圓形vs開關）
由于VSN 10-VSN 20開關的傾斜端子，在將導體連接到開關端子時容易接近
適用于安全斷開
VSN和VSR交換機的5年保修期?。▽?duì)于1之后交付的VSN和VSR交換機。1。2011）
Comparing to the previous VS line, the VSN and VSR product lines offer:
-wider range of amperages
-new type of back mounting panel, allowing for mounting the switch both using screws and to a DIN batten
-higher nominal voltage and current values
-higher mechanical and electrical endurance values
-IP20 as a standard protection of connecting terminals and IP65 on the front side
-modern design of control elements, front panels and new protection covers
-square-shaped switch body (former circle-shaped VS switches)
-facile access when connecting conductors into the switch terminals thanks to inclined terminals of VSN 10 - VSN 20 switches
-suitable for safe disconnection
-5-year warranty for VSN and VSR switches!(for VSN and VSR switches delivered after 1. 1. 2011)

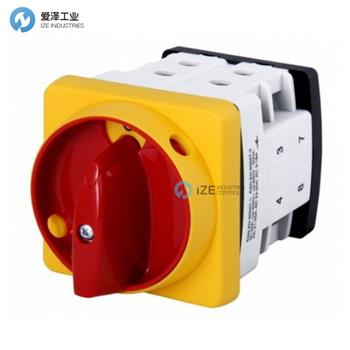

OBZOR開關VSR10
