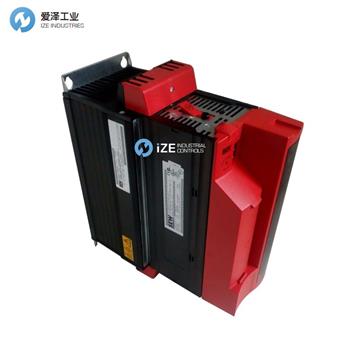

MOVIDRIVE? MDX61B

0110-5A3-4-0_

Size

2

INPUT

Supply voltage Umains

3 ′ AC 380 V –10 % ... 3 ′ AC 500 V +10 %

Supply frequency fmains

50 Hz ... 60 Hz ± 5 %

Rated supply current1) Imains 100 %
(at Vmains = 3 ′ AC 400 V) 125 %

AC 21.6 A
AC 27.0 A

OUTPUT

Apparent output power2) SN (at Vmains = 3 ′ AC 380...500 V)

16.8 kVA

Rated output current1) IN (at Vmains = 3 ′ AC 400 V)

AC 24 A

Continuous output current (= 125 % IN) ID (at Umains = 3 ′ AC 400 V with fPWM = 4 kHz)

AC 30 A

Continuous output current (= 100 % IN) ID (at Umains = 3 ′ AC 400 V with fPWM = 8 kHz)

AC 24 A

Current limitation Imax

Motor and regenerative 150 % IN, duration depending on capacity utilization

Internal current limitation

Imax = 0...150 % adjustable

Minimum permitted braking RBRmin resistor value (4Q operation)

22 ù

Output voltage UA

Max. Vmains

PWM frequency fPWM

Can be set: 4/8/12/16 kHz

Speed range / resolution nA / ?nA

–6000 ... 0 ... +6000 min–1 / 0.2 min–1 across the entire range

GENERAL INFORMATION

Power loss at SN2) PVmax

400 W

Cooling air consumption

80 m3/h

Weight

6.6 kg

Dimensions W ′ H ′ D

135 ′ 315 ′ 285 mm
