ELECTRONIC CONCEPTS電容UP3系列介紹
Specifications | |
Capacitance Range | 25μF to 2100μF |
Capacitance Tolerance | Standard capacitance tolerance is ± 10%. |
Operating Temperature Range | -40°C TO +85°C (+105°C upon special request) |
Enclosure/ Construction | Aluminum housing with brass terminals, encased in a plastic cover |
Voltage Rating | 600VDC to 3000VDC |
Quality Control | Capacitors are tested 100% for: |
ELECTRONIC CONCEPTS電容UP3系列產品介紹
The UP3 capacitor series further enhances the existing UL30 product offering. The UP3 incorporates the established UNLYTIC? film technology with new cost effective packaging, which provides higher storage capacity and voltage creepage protection. The solid plastic top adds more than a one inch gap between the case and terminal connections. The capacitor is isolated from the outer case, allowing for simple package and connection mounting. The product series is well suited for bulk DC storage, especially useful in DC link converter / inverter applications.
UP3電容器系列進一步增強了現有的UL30產品系列。UP3將成熟的UNLYTIC薄膜技術與具有成本效益的新型包裝相結合，可提供更高的存儲容量和電壓爬電保護。堅固的塑料頂部在外殼和端子連接之間增加了超過一英寸的間隙。電容器與外殼隔離，從而簡化了封裝和連接安裝。該產品系列非常適合大容量DC存儲，特別適用于DC Link轉換器/逆變器應用。

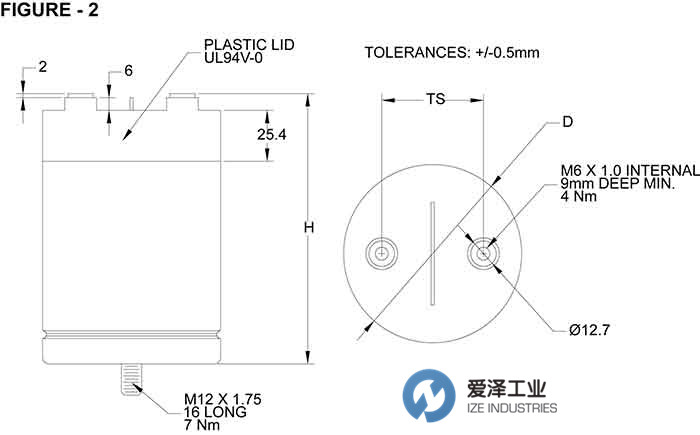

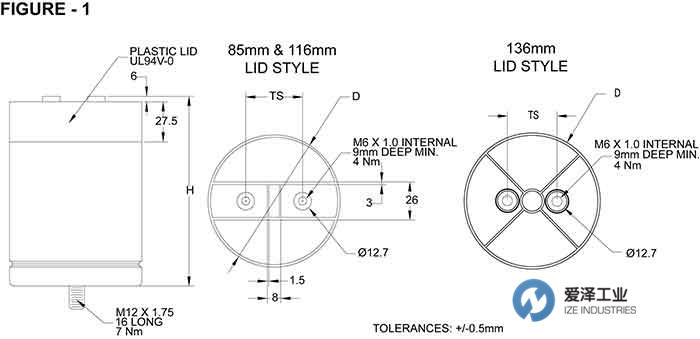

ELECTRONIC CONCEPTS電容UP3系列尺寸圖及選型
ELECTRONIC CONCEPTS電容UP3系列型號
ELECTRONIC CONCEPTS UP3-BC0375
ELECTRONIC CONCEPTS UP3-BC0700
ELECTRONIC CONCEPTS UP3-BE0660
ELECTRONIC CONCEPTS UP3-BE1000
ELECTRONIC CONCEPTS UP3-BE1250
ELECTRONIC CONCEPTS UP3-BE1850
ELECTRONIC CONCEPTS UP3-BJ0250
ELECTRONIC CONCEPTS UP3-BJ0450
ELECTRONIC CONCEPTS UP3-BJ0620
ELECTRONIC CONCEPTS UP3-BJ0750
ELECTRONIC CONCEPTS UP3-BJ1140
ELECTRONIC CONCEPTS UP3-BJ1500
ELECTRONIC CONCEPTS UP3-BJ1050
ELECTRONIC CONCEPTS UP3-BJ1600
ELECTRONIC CONCEPTS UP3-BJ2100
ELECTRONIC CONCEPTS UP3-BM0420
ELECTRONIC CONCEPTS UP3-BM0510
ELECTRONIC CONCEPTS UP3-BM0760
ELECTRONIC CONCEPTS UP3-BM1020
ELECTRONIC CONCEPTS UP3-BM0710
ELECTRONIC CONCEPTS UP3-BM1080
ELECTRONIC CONCEPTS UP3-BM1420
