CELEM 電容C500TW規格描述
TYPE | C500TW | |||||||||
Dimensions ( D ) | mm | ?80 | ?101 | ?80 | ?88 | ?94 | ?80 | ?101 | ||
Weight | kg | 1.1 | 1.4 | 1.1 | 1.2 | 1.3 | 1.1 | 1.5 | ||
Capacitance (±10%) | μF | 1.4 | 3 | 4 | 6.3 | 8.5 | 10 | 21 | 27 | 37 |
Sinusoidal Voltage | Vrms | 1100 | 750 | 900 | 700 | 500 | 550 | 500 | ||
Peak Voltage | Vpeak | 1560 | 1060 | 1270 | 990 | 710 | 780 | 710 | ||
Max. Current | Arms | 600 | 800 | 700 | 1000 | |||||
Max. Power | kVAr | 500 | ||||||||
Freq Range @ Full Power | kHz | 47-82 | 47-68 | 25-39 | 26-51 | 19-37 | 16-32 | 15-15 | 10-12 | 9-9 |
Stray Inductance | nH | < 10 | ||||||||
CELEM電容C500TW產品介紹
C500TW是一款重型中頻水冷功率電容器，適用于10 - 70kHz頻率范圍。
除了集成的水冷系統和相同的大安全裕度外，它還具有C500T的所有優點。C500TW可替代C500T，可用作傳導冷卻電容器。
C500TW非常緊湊，提供業內最佳的功率與體積比。
作為水冷電容器，它是高功率，中頻應用的理想構建模塊。
請檢查并聯和 系列 組件的“裝配系統”部分選項。
標準應用：感應加熱，諧振電路，醫療成像，熱處理，等離子應用，無線電力傳輸，EV（電動汽車）充電，IPT，高頻逆變器等。
特征：
聚丙烯水冷電容器
高功率自愈電容器
低ESR
損失低
可根據要求提供UL94-V0。

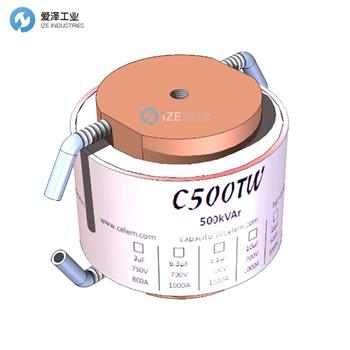

C500TW is a heavy-duty medium frequency water-cooled power capacitor, suited for the 10 - 70kHz frequency range.
It provides all the benefits of the C500T in addition to an integrated water-cooling system and the same large safety margins. The C500TW can replace the C500T and operates as a conduction-cooled capacitor.
C500TW is extremely compact, providing the best power to volume ratio in the industry.
Being a water-cooled capacitor, it is an ideal building block for very high power, medium frequency applications.
Please check in the Assembly Systems section options for parallel and series assemblies.
Standard applications: Induction heating, resonant circuits, medical imaging, heat treatment, plasma applications, wireless power transfer, EV (electric vehicle) charging, IPT, high frequency inverters, etc.
Features:
Polypropylene Water-cooled capacitor
High Power Self-Healing capacitor
Low ESR
Low losses
UL94-V0 available upon request.
CELEM 電容C500TW
愛澤工業(IZE INDUSTRIES)特價經銷、常用備件CELEM 電容部分型號：
CELEM Quad 1000
CELEM Quad 1001 HV
CELEM C500TW
CELEM CMF
CELEM CSP1200
CELEM capacitors NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業成立于2010年，定位于向先進制造工業提供高端制造技術和設備。代理經營世界先進的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于CELEM電容C500TW的疑問，請隨時與我們溝通（021-31006702）。我們將盡全力解決您的問題。
If you have any question for CELEM products, please feel free to dial 0086-21-3100 6702/ send request email to sales@ize-industries.com / browse our website: jjxdch.cn.
CELEM電容C500TW產品參數
