SMITT繼電器KDN系列技術參數
Contact characteristics | |
Amount and type of contacts | 8 C/O |
Maximum make current | 16 A |
Peak inrush current | 200 A (withstand > 10 x 200 A @ 10 ms, 1 min) |
Maximum continuous current | 10 A |
Maximum switching voltage | 250 VDC, 440 VAC |
Minimum switching voltage | 12 V |
Minimum switching current | 10 mA |
Maximum contact resistance | 15 mΩ (initial) |
Material | Ag standard (optional AgSnO2, Au on Ag) |
Contact gap | 0.7 mm |
Contact force | > 200 mN |
Electrical characteristics | |
Dielectric strength Pole-pole | 4 kV, 50 Hz, 1 min |
Pulse withstanding IEC 60255-5 | 5 kV (1.2/50 μs) |
SMITT繼電器KDN系列介紹
帶有8個C / O觸點的插入式工業雙穩態功率繼電器，觸點保持在上一個通電位置，該位置通過位置指示器清晰顯示。 通過兩個線圈和一個機械搖桿裝置可保持雙穩態。兩個單獨的線圈在電流上隔離。
可選配帶電弧放電裝置，以實現高分?jǐn)嗄芰烷L接觸壽命。 不需要外部固定夾，因?yàn)榧傻摹翱焖冁i定”功能可以在所有情況和安裝方向下將繼電器固定在插座中。
繼電器的結構和材料的選擇使KDN繼電器適用于承受低溫和高溫，沖擊和振動以及在非常潮濕的環境中干燥。
緊湊的設計，多種選擇以及多種插座，使KDN繼電器成為一種易于使用的靈活解決方案。
Plug-in industrial bistable power relay with 8 C/O contacts.The contacts remain in the last powered position, the position is clearly shown via a position indicator. Bistable by means of two coils and a mechanical rocker mechanism.The two separate coils are galvanically isolated.
Optionally equipped with magnetic arc blow-out for high breaking capacity and long contact life. No external retaining clip needed as integrated ‘snap-lock’ will hold relay into socket under all circumstances and mounting directions.
The construction of the relay and choice of materials makes the KDN relay suitable to withstand low and high temperatures, shock & vibrating and dry to very humid environments.
Compact design, choice of many options and a wide range of sockets makes the KDN relay an easy and flexible solution to use.

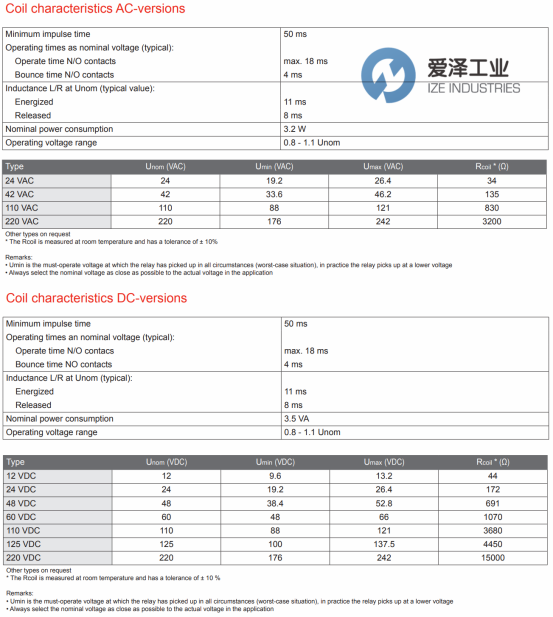

SMITT繼電器KDN系列AC/DC線圈選型介紹

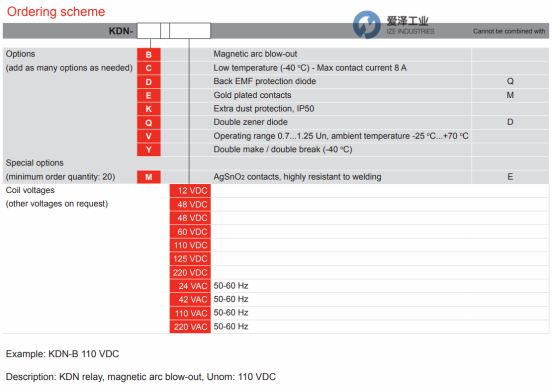

SMITT繼電器KDN系列選型
SMITT繼電器KDN系列其他常用型號：
SMITT KDN-B AC220V
SMITT KDN-B DC110V
SMITT KDN-B DC220V
SMITT Relay NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業成立于2010年，定位于向先進制造工業提供高端制造技術和設備。代理經營世界先進的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于SMITT繼電器KDN-B DC110V的疑問，請隨時與我們溝通（021-31006702）。我們將盡全力解決您的問題。
If you have any question for SMITT products, please feel free to dial 0086-21-3100 6702/ send request email to sales@ize-industries.com / browse our website: jjxdch.cn.

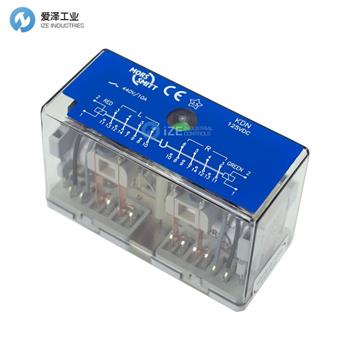

SMITT繼電器KDN-B DC110V產品介紹
