OBO調平盒RKN2 UZD3 9VS25規格介紹
Master data | |
lItem no. | 7409068 |
Type | RKN2 UZD3 9VS25 |
Description 1 | Square cassette |
Description 2 | blank |
Dimension | 243x243mm |
Material | Stainless steel, material no.1.4301 |
Material symbol | A2 |
Smallest sales unit (VG) | 1 Piece |
Weight | 359,00 kg/100 pc. |
Technical data | |
Floor covering thickness | 25,00 mm |
Floor height | 105 mm |
Number of installable devices | 90 |
Number of mounting boxes | 0 |
Number of cable outlets | 0 |
Version for | Square |
Cable outlet version | No cable outlet |
Floor care | Wet |
Installation depth | 105,00 mm |
Decouplable | √ |
Device support to accept mounting boxes | |
Nominal size for device installa tion units | 9 |
Nominal size | 350,00 mm |
Suitable for raised floor installation | √ |
Suitable for cavity floor installation | √ |
Opening mechanism | 250/350 |
Height-adjustment range | Tool |
Approvals | |
Schwerlastausführung | □ |
Installation system type | UT4 |
OBO調平盒RKN2 UZD3 9VS25產品介紹

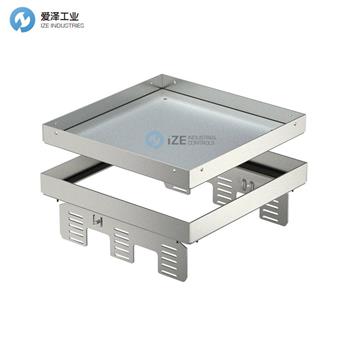

Height-adjustable "blank" cassette, decoupled from the floor, for the creation of an inspection opening of nominal size 9 in dry or wet-cleaned floors for indoor use, for mounting in underfloor boxes UZD250-3 or UZD350-3, either in conjunction with a blanking lid DUG../9 or in UGD250-3/9 or UGD350-3/9. Mounting takes place using levelling profiles (order separately) in the aluminium frame profile of the underfloor boxes. Only suitable for smooth floor coverings.
Height-adjustable cassette as a blind cassette, 3-compartment. 3 APMT5 cover plates can be installed. For the installation of 3 UT4 universal supports for 9 individual installation devices with support ring/support clamp or 12 Modul 45 devices.
高度可調的“空白”盒，與地板分離，用于在干洗或濕洗地板上創建標稱尺寸 9 的檢查孔，供室內使用，用于安裝在地板下盒子 UZD250-3 或 UZD350-3 中使用水平型材（單獨訂購）在地板箱的鋁制框架型材中進行安裝。僅適用于光滑的地板覆蓋物。
高度可調節的暗盒為盲暗盒，3 隔間?？梢园惭b3個APMT5蓋板。用于安裝3個UT4通用支架，用于9個帶有支撐環/支撐夾的單獨安裝設備或 12個Modul 45設備。
OBO調平盒其他常用型號：
OBO RKN2 UZD3 9VS20
OBO RKN2 UZD3 9VS25
OBO RKN2 UZD3 4VS20
OBO RKN2 UZD3 4VS25
OBO RKN2 UZD3 9VS20
OBO RKN2 UZD3 9VS25
OBO RKSN2 UZD3 4VS20
OBO RKSN2 UZD3 4VS25
OBO RKSN2 UZD3 9VS20
OBO RKSN2 UZD3 9VS25
