ELECTRONICON電容E62.C58-101E40技術參數
order no. | E62.C58-101E40 |
CN | 0.1μF |
UN DC | 3600V |
RS | 12.7mΩ |
Rth | 25.6K/W |
I max | 9A |
? | 0.1kA |
IS | 0.3kA |
Le | 60nH |
D1 x L1 | 30mm × 58mm |
M | 0.07kg |

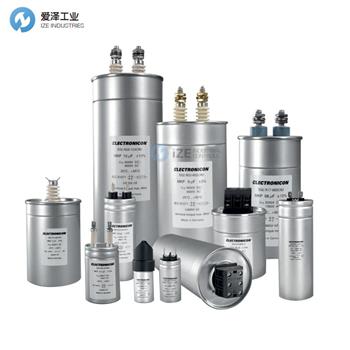

ELECTRONICON電容E62系列介紹
通用交流/直流系列“E62”的圓柱形電容器非常適合用于非正弦電壓和脈沖電流。MKP電介質的低損耗系數在很大程度上補償了非正弦電壓造成的損失。此外，SecuMet?金屬化也能使直流電壓永久負載，這遠遠超過標稱交流電壓的峰值。
E62系列電容都保存在一個密封的鋁制容器里，其采用了環保型植物油或者采用惰性氣體作為填充物。采用氣體填充的電容不僅環保，而且能在所有的位置進行安裝使用；采用植物用填充的同系列產品則學要考慮到環境因素以及電學原因，只能進行垂直安裝
薄膜金屬化具有優異的自愈合特性和自主超壓保護(“BAM”)，確保了在運行壽命結束時發生過載或故障時的安全運行和控制斷開
The cylindrical capacitors of universal AC/DC series "E62" are perfect for non-sinusoidal voltages and pulsed currents. The low loss factor of MKP dielectric compensates to a large extent for the losses caused by the non-sinusoidal voltages. Moreover, the SecuMet? metallization also enables permanent loading with DC voltages which by far exceed the peak value of the nominal AC voltage.
The E62s are housed in a hermetically sealed aluminium can which is filled with environmentally friendly plant oil as standard; optionally many of them can also be made available with a filling of inert gas. The gas filling is not only environmentally friendly, but also permits mounting in any position, while the oil-filled capacitors should - for electrical as well as environmental considerations - always be mounted vertically.
The excellent self-healing characteristics of film metallization and the autonomous overpressure protection (“BAM”) ensure safe operation and controlled disconnection in the event of overload or failure at the end of operating life.
ELECTRONICON電容E62系列其他常用型號：
ELECTRONICON E62.C58-101E40
ELECTRONICON E62.C58-151E40
ELECTRONICON E62.C58-221E40
ELECTRONICON E62.F62-221B20
ELECTRONICON E62.F62-471B21
ELECTRONICON E62.G62-681B20
ELECTRONICON E62.F10-102B21
ELECTRONICON E62.H10-152B20
ELECTRONICON E62.F10-202B20
ELECTRONICON E62.G10-202B20
