GE熔斷器9F62FDD150參數特性
Technical Specifications | |
Item number | 9F62FDD150 |
Description | Medium Voltage E-Rated Fuse 15500VAC 150A Ferrule, Series: FDD Visual Indicator Amp-Trap? |
Rated voltage AC UL | 15500 V |
Frequency (Hz) | 50/60 Hz |
Ampere Rating | 150 A |
ROHS Compliant | Yes |
AC or DC | AC |
Speed/Characteristic | E-Rated |
Mounting | Clip |
AC Max I.R./Breaking Capacity: I1 | 50 kA |
Indication System | Yes |
Indication System Type | Visual Indicator |
Connection/Terminal Material | Silver-Plated Copper |
Connection/Terminal Type | Ferrule |
Product Length | 18.88 in |
Sell Pack Quantity | 1 EA |
Sell Pack Weight | 21 lb |
Sell Pack Width | 8 in |
Sell Pack Length | 20.75 in |
Sell Pack Height | 3.88 in |
Product group | Medium Voltage IEEE Fuses |
Body/Insulating Material | Epoxy |
Product Weight | 20 lb |
GE熔斷器9F62FDD150描述說明
中壓 E 級保險絲 15500VAC 150A 管狀，系列：FDD 帶可視指示器的 Amp-Trap?
保險絲用于保護變壓器和配電線路，提供過載和短路保護。這些限流保險絲將在電流達到保險絲額定值的 1.7 倍時熔斷，最大限流能力可達其額定中斷能力。這些保險絲設計用于承受變壓器的勵磁涌流。它們的直徑分別為 2 英寸（C 型）、3 英寸（D 型）和 2x3 英寸（DD 型），配有管狀接頭，并安裝在彈簧加固的夾具中。
Medium Voltage E-Rated Fuse 15500VAC 150A Ferrule, Series: FDD Visual Indicator Amp-Trap?
Fuses for the protection of transformers and distribution lines deliver overload and short circuit protection. These current-limiting fuses will melt at current that can be as low as 1.7 times the fuse current ratings up to its maximum interrupting rating. These fuses are designed to withstand the transformer magnetizing inrush current. They have 2" (size C), 3" (size D) and 2x3" (size DD) inch diameter barrels with ferrules and are mounted in spring reinforced clips.
GE熔斷器9F62系列其他常見型號：
GE 9F62DDD050
GE 9F62DDD065
GE 9F62DDD080
GE 9F62DDD100
GE 9F62FDD125
GE 9F62FDD150
GE 9F62FDD175
GE 9F62FDD200
GE Fuse NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業成立于2010年，定位于向先進制造工業提供高端制造技術和設備。代理經營世界先進的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于GE熔斷器9F62FDD150的疑問，請隨時與我們電聯，（021-3100 6702），我們將盡全力解決您的問題。
If you have any question for GE products, please feel free to dial 0086-21-3100 6702/ send request email to sales@ize-industries.com / browse our website: jjxdch.cn.

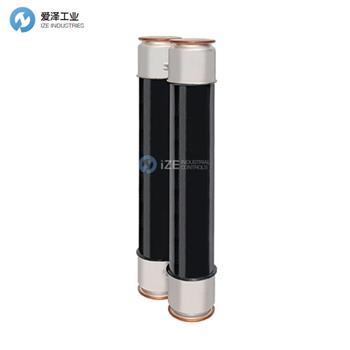

GE熔斷器9F62FDD150產品說明
