CEAG連接器GHG5113304R0001產品參數
Specification | |
Attribute | Value |
Type | Coupler |
Plug/Socket | Plug, Socket |
Mounting Type | Cable Mount |
Pole Format | 2P+E |
Voltage Rating | 130 V |
Current Rating | 16A |
IP Rating | IP66 |
Housing Material | Nylon |
Contact Material | Brass |
Contact Plating | Nickel |
Strain Relief | Yes |
Gender | Female, Male |
Hazardous Area Certification | ATEX |
CEAG連接器GHG5113304R0001產品介紹
CEAG Crouse-Hinds增強型BS4343（IEC309）插頭，插座和耦合器專為危險區域環境設計。與廣泛使用的標準版本相比，增強型范圍具有機械上的優勢。增強版將最終取代標準系列。
插頭和匝道連接
防護等級達到IP66 / 67，適用于1區和2區應用，以及21區和22區防塵應用
CEAG標準危險區域插頭將與增強型插座和耦合器配對CEAG標準危險區域插頭將
與標準插座和耦合器配對
CEAG Crouse-Hinds的三極增強型耦合器專為危險區域環境而設計，并具有IP66的防護等級。該電纜安裝的增強型耦合器還具有獲得專利的即插即用系統，可實現快速，可靠的配合連接。
該CEAG連接器經過ATEX認證，可在多塵潮濕的環境中或室外使用時快速便捷地進行電源連接。耦合器有一個鉸接蓋，可在未配合時保護連接器。
增強型插頭在標準范圍內具有機械優勢，并且無法與標準插座匹配。
CEAG Crouse-Hinds enhanced BS4343 (IEC309) plugs, sockets and couplers are designed specifically for hazardous area environments. The Enhanced ranges offer mechanical advantages over the popular and widely used Standard versions. The Enhanced version will ultimately replace the Standard range.
Patented plug and turn connections
Ingress protection to IP66/67
Suitable for Zone 1 and Zone 2 applications, and also Zone 21 and Zone 22 dust applications
CEAG Standard hazardous area plugs will mate with Enhanced sockets and couplers
CEAG Enhanced hazardous area plugs will NOT mate with standard sockets and couplers

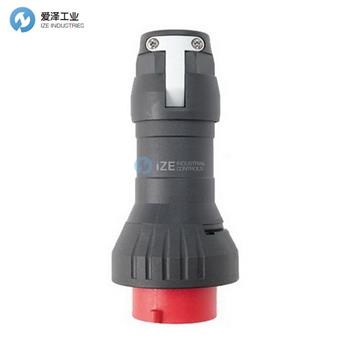

From CEAG Crouse-Hinds, this three pole Enhanced Coupler is designed specifically for hazardous area environments, and has an ingress protection of IP66. This cable-mounted Enhanced Coupler also features a patented plug and turn system, for a fast and assured mating connection.
This CEAG connector is ATEX approved, and allows fast and convenient power connection in dusty and damp environments, or outdoor use. The coupler has a hinged cap to protect the connector when unmated.
The Enhanced Plug offers mechanical advantages over the Standard range, and cannot mate with Standard sockets.
CEAG連接器GHG5113304R0001其他常見型號：
CEAG GHG5117306R0001
CEAG GHG5117304R0001
CEAG GHG5113306R0001
CEAG GHG5113304R0001
CEAG GHG5117406R0001
CEAG GHG5114406R0001
