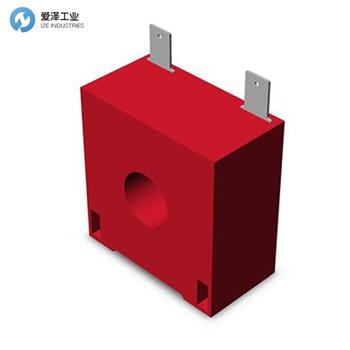

SIRIO脈沖驅動變壓器TA150645技術參數
Rated current | 50 Arms |
Turns ratio | 1:1000 |
Working frequency | 50 ÷ 60 Hz |
Secondary inductance | 2,15 H |
Secondary winding resistance | 50 ? |
Nominal working voltage | 480 Vrms |
P/S insulation voltage | 4,68 kVrms 50 Hz 1' |
Rated ambient temperature | -25°C ÷ +85°C |
Max. internal operating temperature | 100°C |
SIRIO脈沖驅動變壓器TA150645技術尺寸圖
SIRIO脈沖驅動變壓器TA系列規格概述
通過對電流互感器的最終應用和用途的分析,提出了幾種電流互感器的設計方案。每種類型都有自己的特定功能,但它們都有相同的目標:將輸入電流值轉換成比例信號;測量的準確性取決于應用的好壞。
通常,電流是變壓器的一次電流,而二次繞組連接到負載電阻上,以獲得與測量電流信息相同的電壓信號。
By considering the final application and the purpose, several current transformer kinds are available. Each type has its own specific features, but they all have the same goal: to convert, the input current value in a proportional signal; the accuracy of the measurement depends on the application.
Tipically, the current will be the primary current of the transformer, while the secondary winding will be connected to a burden resistance, in order to obtain a voltage signal with the same information of the measured current.
SIRIO脈沖驅動變壓器TA系列其他型號
SIRIO TA150621
SIRIO TA150622
SIRIO TA150624
SIRIO TA150625
SIRIO TA150651
SIRIO TA150652
SIRIO TA150654
SIRIO TA150655
SIRIO TA150641
SIRIO TA150642
SIRIO TA150644
SIRIO TA150645
SIRIO TA150671
SIRIO TA150672
SIRIO TA150674
SIRIO TA150675
SIRIO transformer NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業成立于2010年,定位于向先進制造工業提供高端制造技術和設備。代理經營世界先進的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣,液壓以及氣動解決方案的合作伙伴,我們利用我們的全球協作團隊,為客戶提供先進解決方案,市場知識以及相關增值服務來幫助優化客戶的工作效率,提高可靠性和安全性,致力于成為工業產品和解決方案的優質渠道。
如果有任何關于SIRIO脈沖驅動變壓器TA150645的疑問,請隨時與我們電聯,(021-3100 6702),我們將盡全力解決您的問題。
If you have any quesTAon for SIRIO products, please feel free to dial 0086-21-3100 6702/ send request email to sales@ize-industries.com / browse our website: jjxdch.cn.

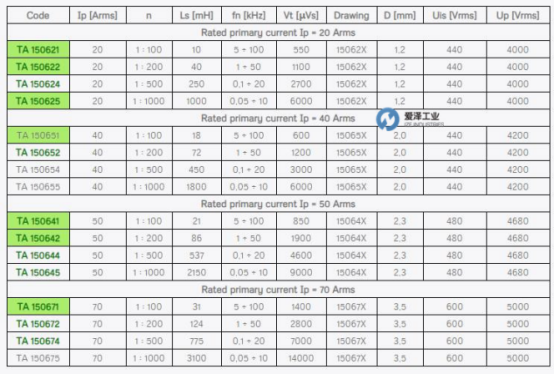

SIRIO脈沖驅動變壓器TA150645外觀尺寸及參數選型
