SIRIO電流變壓器TA系列選型介紹
Code | Ip [Arms] | Is [Arms] | n | Rc [Ω] | UOUT [Vrms] | Outputs | D [mm] | Drawing |
TA 150120 | 400 | 0,400 | n1-4 = 1000 | 20 | 8,0 | Faston 1-4 | 26 | 150A |
TA 150130 | 200 | 0,400 | n1-2 = 500 | 20 | 8,0 | Faston 1-2 | 26 | 150C |
400 | 0,400 | n1-3 = 1000 | 20 | 8,0 | Faston 1-3 | |||
600 | 0,400 | n1-4 = 1500 | 20 | 8,0 | Faston 1-4 | |||
TA 150140 | 400 | 0,200 | n1-4 = 2000 | 20 | 4,0 | Faston 1-4 | 26 | 150A |
TA 150150 | 200 | 0,200 | n1-2 = 1000 | 20 | 4,0 | Faston 1-2 | 26 | 150C |
300 | 0,200 | n1-3 = 1500 | 20 | 4,0 | Faston 1-3 | |||
400 | 0,200 | n1-4 = 2000 | 20 | 4,0 | Faston 1-4 | |||
TA 150160 | 600 | 0,600 | n1-4 = 1000 | 10 | 6,0 | Faston 1-4 | 26 | 150A |
TA 150170 | 600 | 0,200 | n1-4 = 3000 | 20 | 4,0 | Faston 1-4 | 26 | 150A |
TA 151008 | 200 | 0,200 | n1-4 = 1000 | 10 | 2,0 | Faston 1-4 | 18 | 151A |
TA 151100 | 200 | 0,200 | n1-4 = 500 | 20 | 4,0 | Faston 1-4 | 18 | 151A |
TA 151104 | 50 | 0,200 | n1-2 = 250 | 40 | 8,0 | Faston 1-2 | 18 | 151C |
100 | 0,200 | n1-3 = 500 | 40 | 8,0 | Faston 1-3 | |||
200 | 0,200 | n1-4 = 1000 | 40 | 8,0 | Faston 1-4 | |||
TA 151110 | 25 | 0,400 | n1-2 = 125 | 20 | 4,0 | Faston 1-2 | 18 | 151C |
50 | 0,400 | n1-3 = 250 | 20 | 4,0 | Faston 1-3 | |||
100 | 0,400 | n1-4 = 500 | 20 | 4,0 | Faston 1-4 | |||
TA 151133 | 100 | 0,100 | n1-4 = 1000 | 20 | 2,0 | Faston 1-4 | 18 | 151A |
TA 152023 | 25 | 0,050 | n1-2 = 500 | 40 | 2,0 | Pins 1-2 | 13 | 152B |
TA 152025 | 25 | 0,050 | n1-2 = 500 | 40 | 2,0 | Faston 1-2 | 13 | 152A |
TA 152027 | 50 | 0,050 | n1-2 = 1000 | 80 | 4,0 | Pins 1-2 | 13 | 152B |
TA 152050 | 50 | 0,050 | n1-2 = 1000 | 80 | 4,0 | Faston 1-2 | 13 | 152A |
TA 153001 | 70 | 0,140 | n1-2 = 500 | 25 | 3,5 | Faston 1-2 | 9 | 153A |
TA 153002 | 70 | 0,070 | n1-2 = 1000 | 50 | 3,5 | Faston 1-2 | 9 | 153A |
TA 153003 | 70 | 0,035 | n1-2 = 2000 | 100 | 3,5 | Faston 1-2 | 9 | 153A |
TA 153006 | 70 | 0,140 | n1-2 = 500 | 25 | 3,5 | Pins 1-2 | 9 | 153B |
TA 153007 | 70 | 0,070 | n1-2 = 1000 | 50 | 3,5 | Pins 1-2 | 9 | 153B |
TA 153008 | 70 | 0,035 | n1-2 = 2000 | 100 | 3,5 | Pins 1-2 | 9 | 153B |

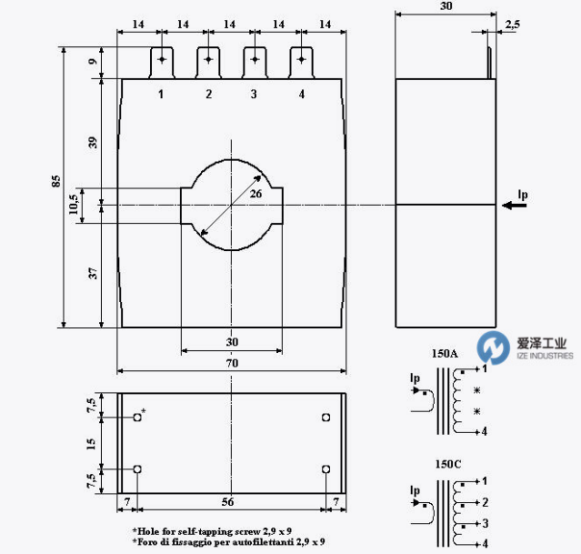

SIRIO電流變壓器152025產品尺寸圖
通過對電流互感器的最終應用和用途的分析，提出了幾種電流互感器的設計方案。每種類型都有自己的特定功能，但它們都有相同的目標：將輸入電流值轉換成比例信號;測量的準確性取決于應用的好壞。
通常，電流是變壓器的一次電流，而二次繞組連接到負載電阻上，以獲得與測量電流信息相同的電壓信號。
愛澤工業(IZE INDUSTRIES)特價經銷、常用SIRIO變壓器型號：
SIRIO TA 150120
SIRIO TA 150130
SIRIO TA 150140
SIRIO TA 150150
SIRIO TA 150160
SIRIO TA 150170
SIRIO TA 151008
SIRIO TA 151100
SIRIO TA 151104
SIRIO TA 151110
SIRIO TA 151133
SIRIO TA 152023
SIRIO TA 152025
SIRIO TA 152027
SIRIO TA 152050
SIRIO TA 153001
SIRIO TA 153002
SIRIO TA 153003
SIRIO TA 153006
SIRIO TA 153007
SIRIO TA 153008
SIRIO transformer NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業成立于2010年，定位于向先進制造工業提供高端制造技術和設備。代理經營世界先進的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的首選渠道。
如果有任何關于SIRIO電流變壓器TA系列的疑問，請隨時與我們電聯，（021-3100 6702），我們將盡全力解決您的問題。
If you have any question for SIRIO products, please feel free to dial 0086-21-3100 6702/ send request email to sales@ize-industries.com / browse our website: jjxdch.cn.

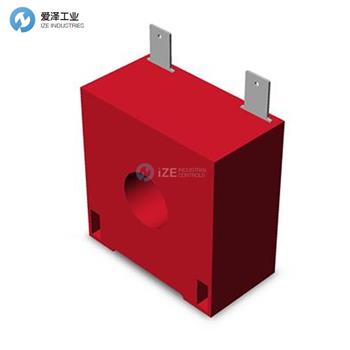

SIRIO電流變壓器TA系列 152025產品介紹及特性
