SIRIO脈沖驅動變壓器TA-150621技術參數
Turns ratio | 1: 100 |
Rated current | 20 Arms |
Secondary inductance | 10 mH |
Secondary resistance | 0,74 Q |
P/S coupling capacity | 5 pF |
Operating frequency | 5+ 100 kHz |
P/S insulation voltage | 4 kVrms 50 Hz 1' |
Rated ambient temperature | -25℃ + +85℃ |
Max. internal operating temperature | 100℃ |
SIRIO脈沖驅動變壓器TA系列規格概述
通過對電流互感器的應用和用途的分析，提出了幾種電流互感器的設計方案。每種類型都有自己的特定功能，但它們都有相同的目標：將輸入電流值轉換成比例信號;測量的準確性取決于應用的好壞。
通常，電流是變壓器的一次電流，而二次繞組連接到負載電阻上，以獲得與測量電流信息相同的電壓信號。
By considering the final application and the purpose, several current transformer kinds are available. Each type has its own specific features, but they all have the same goal: to convert, the input current value in a proportional signal; the accuracy of the measurement depends on the application.
Tipically, the current will be the primary current of the transformer, while the secondary winding will be connected to a burden resistance, in order to obtain a voltage signal with the same information of the measured current.

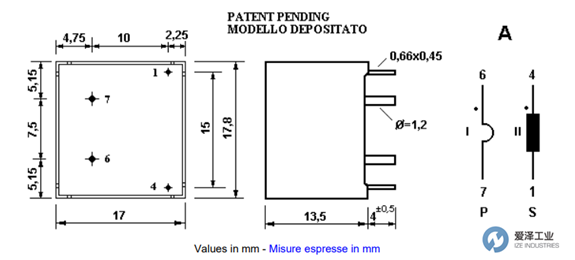

SIRIO脈沖驅動變壓器TA-150621技術尺寸
SIRIO脈沖驅動變壓器TA系列其他常用型號：
SIRIO TA -150621
SIRIO TA -150622
SIRIO TA -150624
SIRIO TA -150625
SIRIO TA -150651
SIRIO TA -150652
SIRIO TA -150654
SIRIO TA -150655
SIRIO TA -150641
SIRIO TA -150642
SIRIO TA -150644 .
SIRIO TA -150645
SIRIO Transformer NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業成立于2010年，定位于向制造工業提供高端制造技術和設備。代理經營世界優質的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于SIRIO脈沖驅動變壓器TA-150621的疑問，請隨時與我們溝通（021-31006702）。我們將盡全力解決您的問題。
If you have any question for SIRIO products, please feel free to dial 0086-21-3100 6702/ send request email to sales@ize-industries.com / browse our website:jjxdch.cn.
SIRIO脈沖驅動變壓器TA-150621技術參數及尺寸
