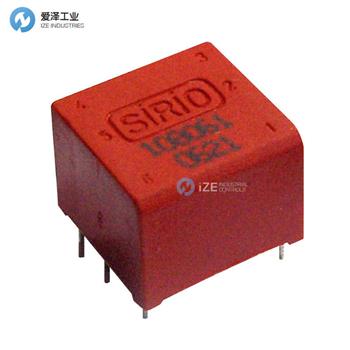

SIRIO變壓器109215介紹
Code | TI 109215 |
n | 1 : 1,2 : 1,2 |
Vt [μVs] | 150 |
Ip [mArms] | 250 |
Lp [mH] | 1,30 |
Ls [μH] | 3,0 |
Ck [pF] | 20 |
Uis [Vrms] | 500 |
Up [Vrms] | 4000 |
SIRIO變壓器TI系列介紹
脈沖變壓器用于高頻功率轉換器，當需要根據與每個不同應用領域相關的安全標準將電脈沖從控制傳輸?shù)焦β始墪r，保持電路之間的電流隔離。
電信號施加到初級側并傳輸?shù)酱渭墏?cè)，以激發功率 BJT、功率 MOSFET、IGBT、SCR、GTO、TRIAC。
特征
在高頻功率變換系統中，有多種控制技術可用，并且由于控制設備參數（如額定功率、額定電壓和電流、應用領域）的不同，它們彼此不同。
開發人員為其應用選擇觸發拓撲后，有機會通過考慮其主要參數來找到最合適的脈沖變壓器。
Pulse transformers are used in high frequency power converters, when it is required to trasfer an electrical pulse from the control to the power stage, keeping the galvanic isolation between the circuits, according to the safety standards related to each different application fields.
The electrical signal is applied to the primary side and transferred to the secondary side, to fire power BJTs, power MOSFETs, IGBTs, SCRs, GTOs, TRIACs.
Features
In high frequency power conversion systems, several control techniques are available and they differ from each other because of the striking apparatus parameters, like rated power, rated voltages and currents, field of application.
After the developer has chosen the firing topology for his application, he has the chance to find the most suitable pulse transformer, by considering its main parameters.
SIRIO變壓器TI系列其他常用型號：
SIRIO TI109202
SIRIO TI109204
SIRIO TI109205
SIRIO TI109210
SIRIO TI109212
SIRIO TI109213
SIRIO TI109214
SIRIO TI109215
SIRIO TI109217
SIRIO TI109220
SIRIO TI109221
SIRIO TI109226
SIRIO transformer NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業成立于2010年，定位于向先進制造工業提供高端制造技術和設備。代理經營世界先進的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的首選渠道。
如果有任何關于SIRIO變壓器109215的疑問，請隨時與我們電聯，（021-3100 6702），我們將盡全力解決您的問題。
If you have any question for SIRIO products, please feel free to dial 0086-21-3100 6702/ send request email to sales@ize-industries.com / browse our website: jjxdch.cn.
SIRIO變壓器109215技術參數介紹
