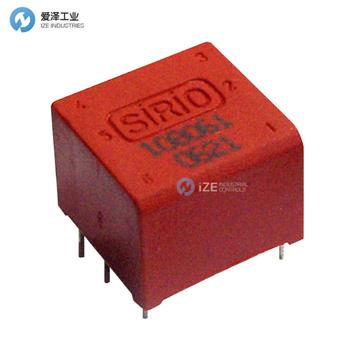

SIRIO電流變壓器109210介紹
Rapporto spire | n: 1 : 1 : 1 |
Area di trasferimento @ Bmax, 25°C | Area: 250 μVs |
Corrente primaria | Ip: 300 mA |
Corrente primaria massima | Imax: 10 A (200 ns) |
Induttanza primario | Lp: 2,5 mH |
Induttanza dispersa | Ls: 5 μH |
Capacità di accoppiamento P/S | Ck: 25 pF |
Resistenza avvolgimento primario | Rp: 500 mΩ |
Resistenza avvolgimenti secondari | Rs: 650 mΩ |
Tensione di lavoro | Ul: 330 Vac |
Isolamento P/S1/S2 | Up: 3,2 kVrms 50 Hz 1' |
SIRIO電流變壓器TI系列 介紹
Different sizes' drive and pulse transformers based on ferrite EE cores, with interleaved windings. They typically have trasfer area values from hundred to thousand μVs, depending on the dimension. They are by far the most used drive transformers because of their versatility, that makes them suitable for many application fields, with different working voltages, currents and frequencies. The greatest advantage of these components is their flexibility: it is very easy to obtain different solutions by changing the main winding variables, like the windings' number of turns, in function of the needed transfer area and turns ratio; the wires' section, in relation to the windings current; the numbers of isolating layers and the distances between windings, according to the requested isolation, or to the working voltage, or to the coupling capacity level that the application requires; the internal construction in terms of windings' disposition, to achieve the leakage inductance value (i.e. sandwich topology, parallel winding...). They are tipically used in IGBTs, power MOSFETs and BJTs' high frequency firing circuits. Standard versions are designed with one or two secondary windings.
The development of such a type of drive transformers is oriented to the production with automatic multi-mandrel winding machines, that is always more desirable than a manual winding process, as it allows to guarantee a stable quality and a well defined construction for all pieces.
不同尺寸的驅動和脈沖變壓器基于鐵氧體 EE 磁芯，具有交錯繞組。 它們的傳輸面積值通常為數百到數千微伏，具體取決于尺寸。 它們是迄今為止最常用的驅動變壓器，因?yàn)樗鼈兙哂卸喙δ苄裕m用于具有不同工作電壓、電流和頻率的許多應用領域。 這些組件的最大優點是它們的靈活性：通過改變主要繞組變量（例如繞組的匝數），根據所需的傳輸面積和匝數比，很容易獲得不同的解決方案； 電線截面與繞組電流的關系； 根據所要求的隔離、工作電壓或應用所需的耦合電容水平，確定隔離層的數量和繞組之間的距離； 內部結構在繞組配置方面，以實現漏感值（即三明治拓?fù)?、并?lián)繞組...）。 它們通常用于 IGBT、功率 MOSFET 和 BJT 的高頻觸發電路。 標準版本設計有一個或兩個次級繞組。
這種類型的驅動變壓器的開發面向自動多芯軸繞線機的生產，這總是比手動繞線工藝更理想，因?yàn)樗梢员ＷC穩定的質量和所有部件和結構的明確定義。
SIRIO變壓器常用型號：
SIRIO TI109202
SIRIO TI109204
SIRIO TI109205
SIRIO TI109210
SIRIO TI109212
SIRIO TI109213
SIRIO TI109214
SIRIO TI109215
SIRIO TI109217
SIRIO TI109220
SIRIO TI109221
SIRIO TI109226
SIRIO transformer NEW + ORIGINAL+ ONE YEAR WARRANTY
