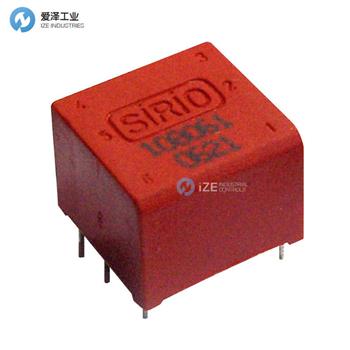

SIRIO脈沖變壓器117120技術參數
Code | TI 117120 |
n | 1 : 1 : 1 |
Vt [μVs] | 300 |
I P [mArms] | 200 |
LP [mH] | 3,50 |
Ls [μH] | 2,2 |
Ck [pF] | 35 |
Uis [Vrms] | 500 |
Up [Vrms] | 4000 |
Drawing | 117D |
SIRIO脈沖變壓器TI系列介紹
PURPOSE
Pulse transformers are used in high frequency power converters, when an electrical pulse has to be transferred from the control stage to the power stage, by keeping the galvanic isolation between the circuits, according to the required safety standards. The electrical signal is applied to the primary winding and transferred to the secondary side, to fire electronic switches. The 109, 117 and 118 families are based on diferent sizes of EE cores.
FEATURES
109, 117 and 118 gate drive transformers are by far the most used drive transformers because of their versatility, that makes them suitable for many application fields, with diferent working voltages, currents and frequencies. The greatest advantage of these families of components is the flexibility: it is very easy to obtain diferent solutions by changing the main winding variables. The development of such a type of drive transformers is oriented to the automatic line production, that is always more desirable than a manual winding process, as it allows a stable quality and a well defined construction for all pieces.
概述
根據所需的安全標準，當必須通過保持電路之間的電流隔離將電脈沖從控制級傳輸?shù)焦β始墪r，脈沖變壓器用于高頻功率轉換器。 電信號施加到初級繞組并傳輸?shù)酱渭墏?cè)，以觸發電子開關。 109、117 和 118 系列基于不同尺寸的 EE 內核。
特征
109、117和118柵極驅動變壓器是迄今為止使用最多的驅動變壓器，因為它們的通用性使其適用于許多應用領域，具有不同的工作電壓、電流和頻率。 這些組件系列的最大優點是靈活性：通過改變主繞組變量很容易獲得不同的解決方案。 這種類型的驅動變壓器的開發面向自動生產線生產，這總是比手動繞線工藝更可取，因為它允許所有部件的穩定質量和明確定義的結構。
SIRIO脈沖變壓器TI系列其他常用型號：
SIRIO TI 109204
SIRIO TI 109210
SIRIO TI 109215
SIRIO TI 109217
SIRIO TI 117110
SIRIO TI 117120
SIRIO 117120
SIRIO TI 117160
SIRIO TI 117610
SIRIO TI 117615
SIRIO TI 118310
SIRIO TI 118320
SIRIO TI 118330
SIRIO TI 118340
SIRIO Pulse Transformers NEW + ORIGINAL+ ONE YEAR WARRANTY
