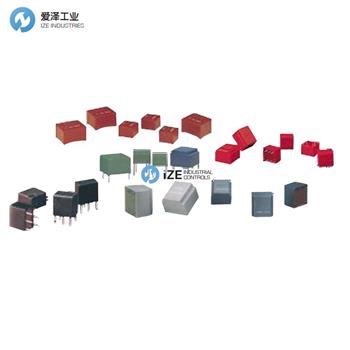

SIRIO脈沖驅動變壓器TI系列介紹
根據與每個不同應用領域相關的安全標準，當需要將電脈沖從控制傳遞到功率級時，脈沖變壓器用于高頻功率轉換器，保持電路之間的電流隔離。
電信號施加到初級側并傳輸?shù)酱渭?jí)側，以發射功率BJT，功率MOSFET，IGBT，SCR，GTO，TRIAC。
特征
在高頻功率轉換系統中，由于設備參數的不同，如額定功率、額定電壓和電流、應用領域等，有幾種不同的控制技術可供選擇。
脈沖變壓器的主要特點如下：
? n 初級到次級匝數比
? Vt 最小電壓*時間區域（稱為傳輸區域），可以在次級側使用單極性脈沖傳輸，而不會導致磁芯飽和，參考溫度為25°C
? LP 初級繞組電感
? Ck 繞組之間的耦合能力
? Ls 主泄漏電感，是在主側測得的電感值，二次繞組短路
? RP 初級繞組電阻
? RS 二次繞組電阻
? tr 上升時間，是在次級側連接額定負載電阻時傳遞脈沖所需的時間;該值與漏感值緊密相關
? Imax 最大二次電流，上升時間等于tr（額定負載電阻連接到次級繞組）
? Ip 額定初級有效電流（熱電流）
? fn 額定工作頻率（或最佳頻率范圍）
? Uis 兩個繞組之間的最大工作電壓
? Up 兩個繞組之間的隔離電壓
Pulse transformers are used in high frequency power converters, when it is required to trasfer an electrical pulse from the control to the power stage, keeping the galvanic isolation between the circuits, according to the safety standards related to each different application fields.
The electrical signal is applied to the primary side and transferred to the secondary side, to fire power BJTs, power MOSFETs, IGBTs, SCRs, GTOs, TRIACs.
Features
In high frequency power conversion systems, several control techniques are available and they differ from each other because of the striking apparatus parameters, like rated power, rated voltages and currents, field of application.
? n primary to secondary turns ratio
? Vt minimum voltage*time area (called transfer area) that can be trasferred at the secondary side with unipolar pulse, without causing the core saturation, referred to the temperature of 25°C
? LP primary winding inductance
? Ck coupling capacity between windings
? Ls primary leakage inductance, it is the inductance value measured at the primary side, with the secondary winding short-circuited
? RP primary winding resistance
? RS secondary winding resistance
? tr rise time, it is the time that takes to trasfer the pulse when the rated load resistance is connected at the secondary side; this value is tightly connected to the leakage inductance value
? Imax maximum secondary current, available with a rise time equal to tr (rated load resistance connected to the secondary winding)
? Ip rated primary effective current (thermal current)
? fn rated working frequency (or optimum frequency range)
? Uis maximum working voltage between two windings
? Up isolation voltage between two windings
SIRIO脈沖驅動變壓器TI系列其他常用型號：
SIRIO TI105630
SIRIO TI105645
SIRIO TI108001
SIRIO TI108002
SIRIO TI108010
SIRIO TI108020
SIRIO TI108021
SIRIO TI108022
SIRIO TI108030
SIRIO TI108040
SIRIO TI108050
SIRIO TI108060
SIRIO transformer NEW + ORIGINAL+ ONE YEAR WARRANTY
