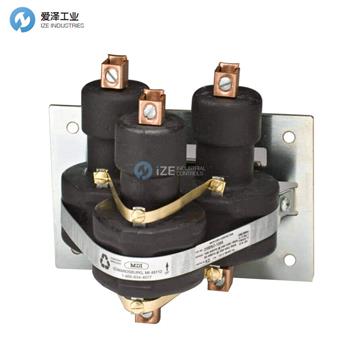

MDI接觸器3100NO-120AH規格介紹
CONTACT RESISTANCE | .001 ohms |
DIELECTRIC WITHSTAND | 2,500 VAC RMS |
OPERATE TIME | 50 MILLISECONDS |
RELEASE TIME | 80 MILLISECONDS |
TEMPERATURE RANGE | -35° TO +85° C |
COIL TERMINALS | #6 BINDING HEAD SCREWS |
TORQUE TO | 7 IN-LB |
LOAD TERMINALS | 2-8 AWG COMPRESSION TYPE |
TORQUE TO | 45 IN-LB |
RATINGS: | |
CONTACTS: | 80 AMP @ 480 VAC |
RESISTIVE OR GENERL PURPOSE | |
COIL: | 120V 50/60 Hz |
RESISTANCE: | 127 Ω |
CURRENT: | 411 mA |
VA | 49.2 |
WATTAGE | 21.3 |
THREE POLE / SINGLE THROW | |
MAGNETICALLY ACTIVATED | |
MERCURY CONTACTOR |
MDI接觸器產品介紹
水銀位移繼電器的設計和制造都滿足工業的最嚴格要求。它們在電氣領域中贏得了很高的地位，能夠出色地完成普通設備可能無法可靠完成的艱巨和復雜任務。無論在何種應用中，它們都能在極端的溫度、塵埃和潮濕條件下表現出色。
100-安培常開接觸器按照高質量規格設計和制造，常用于各種供暖、照明以及許多其他工業應用，包括高壓紫外線負載。接觸點封裝在不銹鋼密封管中，可實現數百萬次可靠開關操作。MDI 自 1975 年以來便開始生產這種接觸器，提供單極、雙極、三極和四極型號。
Mercury Displacement Relays are all designed and built to meet the most exacting demands of industry. They have won their high place in the electrical field by doing the tough and tricky jobs that ordinary equipment could at best do in an uncertain manner. They have proved their ability to stand up under the most adverse conditions of temperature, dust and moisture, in all types of applications.
The 100-AMP normally open contactors are designed and manufactured to high quality specifications and the contactors are commonly used in various heating, lighting, and many other industrial applications including high voltage ultraviolet type loads. The contacts are encased in hermetically sealed stainless steel tubes to provide reliable switching for millions of operations. MDI has manufactured this contactor since 1975. It is available in the single, two, three & four pole models.
MDI接觸器其他型號：
MDI 3100NO-120AH
MDI 3100NO-120A
MDI Magnetic ContractorMagnetic Contractor NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業成立于2010年，定位于向先進制造工業提供高端制造技術和設備。代理經營世界先進的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于MDI接觸器3100NO-120AH的疑問，請隨時與我們電聯，（021-3100 6702），我們將盡全力解決您的問題。
If you have any question for MDI products, please feel free to dial 0086-21-3100 6702/ send request email to sales@ize-industries.com / browse our website: jjxdch.cn.
