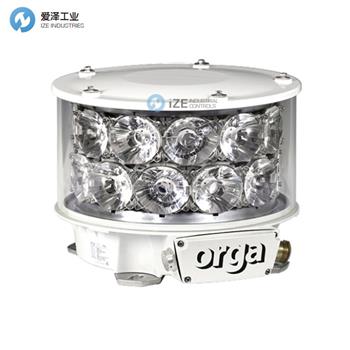

ORGA防爆燈L410EX-W-10技術規格
Flashing white light, Morse code ’U’ every 15 seconds or quick flash USCG by Navaids Central Control Panel (other character on request) | |
Effective intensity: | 1400cd minimum (equals 10Nm at ATF=0.74) |
Horizontal beam coverage: | 360° |
Vertical beam profile: | 2.5° FWTM minimum |
Operating voltage: | 230Vac max.; 400 Hz; ‘U’ coded supply from the NCCP |
Power consumption: | 12W peak; 2W average |
Connection details: | max. 4mm2; two M25 cable gland entries |
Earth connection: | internal max. 4mm2 and external M5 |
Dimensions (L x W x H): | 447 x 416 x 314 mm |
Weight: | 21 kg |
Degree of protection: | IP66 |
Operating temperature range: | -40°C to +55°C |
ORGA防爆燈L410EX-W-10產品介紹
防爆船用燈為海上結構提供 10 海里白色全向視覺覆蓋。采用長壽命 LED 的設計使該產品非常適合環境條件、易于安裝和較長的維護間隔。
可靠的航海燈、低擁有成本和低功耗
適用于有氣體爆炸危險的 Zone 1 和 Zone 2 區域
來自 Navaids 中央控制面板的編碼高壓交流電源，用于降低電纜成本和無故障同步
光強度符合 IALA 要求，即使燈籠的強度降低 25%（使用條件系數，根據 IALA E-200 (2008) Part 2, 5.1）
近海涂層、輕質、無腐蝕、耐海水、抗紫外線和防潮的輕合金底座
不銹鋼安裝設施，以防止腐蝕問題
集成 Ex e 接線盒
由于高效的光學設計，功耗極低
防鳥釘（防止鳥污）
Explosion proof marine light providing 10 nautical mile white omnidirectional visual coverage for offshore structures. The design, with long life LEDs, makes the product ideal for the environmental conditions, easy installation and long maintenance intervals.
Reliable marine navigation light, low cost of ownership and low power consumption
Suitable for Zone 1 and Zone 2 areas with gas explosion hazard
Coded high voltage AC power supply from the Navaids Central Control Panel for low cable costs and failure free synchronisation
Light intensity complies with IALA requirements, even if the intensity of the lanterns is reduced with 25% (service condition factor, as per IALA E-200 (2008) Part 2, 5.1)
Offshore coated, lightweight, corrosion free, seawater, UV and humidity resistant light alloy base
Stainless steel mounting facilities to prevent corrosion problems
Integrated Ex e connection box
Very low power consumption due to efficient optical design
Anti bird spikes (to prevent bird fouling)
ORGA船用防爆燈其他常用型號：
ORGA L420EX-W-06-U05
ORGA L420EX-R-03
ORGA L420EX-W-05
ORGA L420EX-W-10
ORGA L410EX-R-03
ORGA L410EX-W-06
ORGA L410EX-W-10
ORGA L410EX-W-15F
ORGA L410EX-W-15N
ORGA Explosion proof LED marine light NEW + ORIGINAL+ ONE YEAR WARRANTY
