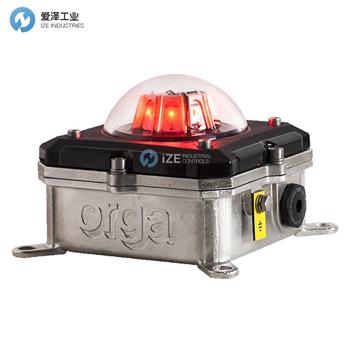

ORGA障礙燈L85EX-R-DC-10技術規格
ELECTRICAL CHARACTERISTICS | |
Operating voltage: | 20-30Vdc |
Power consumption: | 2W |
Connection details: | M4; two M25x1.5 cable entries |
Earth connection: | internal M4 and external M6 |
PHYSICAL CHARACTERISTICS | |
Dimensions (L x W x H): | 161 x 161 x 111mm |
Weight: | 3.6kg |
Design degree of protection: | IP66 |
Operating temperature range: | -40°C to +60°C |
ORGA障礙燈L85EX-R-DC-10產品介紹
主要特征
可靠的低強度航空障礙燈
擁有成本低
低功耗
可維修單元,部件可互換
經認證適用于氣體爆炸危險增加的1區
緊湊的設計
抗沖擊圓頂和不銹鋼機身
寬敞、易于打開的電纜連接隔間
性能特點
穩定燃燒;紅色的
強度:最低 10cd
水平覆蓋:360°
垂直光束剖面:從地平線上方的任何點都可見
國際民航組織規定的邊界內的顏色色度
光源:LED(平均壽命10萬小時)
KEY FEATURES
Reliable low intensity aeronautical obstruction light
Low cost of ownership
Low power consumption
Serviceable unit, parts are interchangeable
Certified for Zone 1 areas with increased gas explosion hazard
Compact design
Impact resistant dome and stainless steel body
Spacious, easy to open cable connection compartment
PERFORMANCE CHARACTERISTICS
Steady burning; red
Intensity: 10cd minimum
Horizontal coverage: 360°
Vertical beam profile: Visible from any point above the horizon
Colour chromaticity within the boundaries as specified by ICAO
Light source: LED (100,000 hours average life)
ORGA障礙燈L85EX系列其他常用型號:
ORGA L85EX-R-AC-10
ORGA L85EX-R-DC-10
ORGA L85EX-R-AC-32
ORGA L85EX-R-DC-32
ORGA L85EX-R-AC-50
ORGA L85EX-R-DC-50
ORGA L85EX-R-AC-200
ORGA L85EX-R-DC-200
ORGA obstruction lights NEW + ORIGINAL+ ONE YEAR WARRANTY
