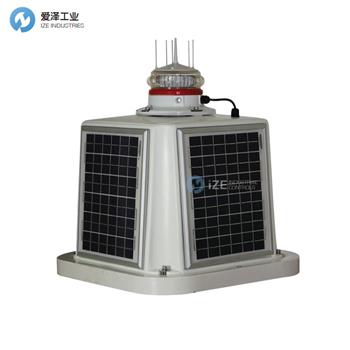

SEALITE燈SLC500技術參數
SPECIFICATIONS | SL-C500 |
Light Characteristics | |
Light Source | SL-155-2.5D/5D/10D lantern |
Available Colours | Red, Green, White, Yellow |
Typical Maximum Intensity (cd)? | Refer to Typical Maximum Intensity Table for SL-155 Series Lanterns |
Visible Range (NM) | AT @ 0.74: 5–12 |
Horizontal Output (degrees) | 0° - 360° |
Vertical Divergence (degrees) | 2.5°, 5° or 10° |
Available Flash Characteristics | Up to 310 including 256 IALA recommended, & 1 custom |
Intensity Adjustments | User adjustable |
LED Life Expectancy (hours) | >100,000 |
Electrical Characteristics | |
Current Draw (mA) | Refer to Sealite Power Calculator |
Power (W) | Refer to Sealite Power Calculator |
Circuit Protection | Polarity protected |
Nominal Voltage (VDC) | 12 |
Autonomy (days) | >20 (14 hour darkness, 12.5% duty cycle) |
Temperature Range | -40 to 80°C |
Solar Characteristics | |
Solar Module Type | Multicrystalline |
Output (watts) | 40 (4 x 10watt) |
Charging Regulation | Microprocessor controlled |
Power Supply | |
Battery Type | Gel SLA |
Battery Capacity (Ah) | 55 |
Nominal Voltage (V) | 12 |
Physical Characteristics | |
Body Material | Rotationally-moulded UV-stabilised virgin polyethylene |
Lens Material | UV-stabilised acrylic |
Lens Diameter (mm/inches) | From 171 / 6? |
Lens Design | Multiple LED optic |
Mounting | 4 x 11mm mounting holes |
Height (mm/inches) | From 675 / 26? |
Width (mm/inches) | 560 / 22 |
Mass (kg/lbs) | From 23 / 50.7 |
Product Life Expectancy | Up to 12 years |
SEALITE燈其他常用型號:
SEALITE SLC500
SEALITE SL-C600
SEALITE lampshade NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業成立于2010年,定位于向制造工業提供高端制造技術和設備。代理經營世界優質的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣,液壓以及氣動解決方案的合作伙伴,我們利用我們的全球協作團隊,為客戶提供先進解決方案,市場知識以及相關增值服務來幫助優化客戶的工作效率,提高可靠性和安全性,致力于成為工業產品和解決方案的優質渠道。
如果有任何關于SEALITE燈SLC500的疑問,請隨時與我們溝通(021-31006702)。我們將盡全力解決您的問題。
If you have any question for SEALITE products, please feel free to dial 0086-21-3100 6702/ send request email to sales@ize-industries.com / browse our website:jjxdch.cn.
