AES頻閃燈EVC-50技術參數

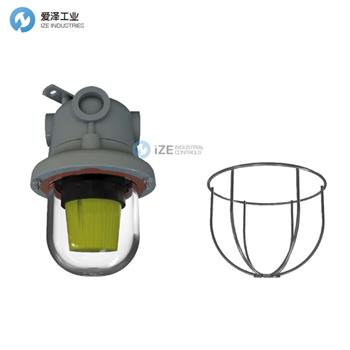

CEILING LIGHT EVC 50 + XENOFLASH |
(COLOR AND INPUT VOLTAGE TO BE DEFINE) |
N.2 HUB φ 3/4" NPT |
ALUMINUM ALLOY PAINTED RAL 7000 + BRACKE T |
II 2G Ex db IIC TB Gb |
II 2D Ex tb IIIC T 85°C Db IP66 |
T.AMB. -20 + 40°C |
AES頻閃燈XF-EV系列介紹
XF-EV 氙氣頻閃系列 XF-EV 可用于固定和移動報警和警告系統。不銹鋼 AISI 316L 版本也用于海上工廠。標準版本包括一個由銅含量低的鋁制成的主體和一個具有高機械強度和耐高溫性的硼硅酸鹽玻璃部件。
這些信號是通過使用在消耗方面具有高光學效果的頻閃氙氣燈產生的，這也要?dú)w功于可用的瓦數：6J、12J、16J、18J、32J。
電子電路有一個控制閃爍頻率的微處理器和一個驅動燈的電容器。
外殼的不同顏色（紅、黃、橙、綠、藍、透明）可以滿足各種安裝要求。也可提供 LED 頻閃燈。
光學單元配有 E27 接頭，可快速更換。
提供三種型號：
XF-EVA 懸掛式安裝，帶有一個 3/4” NPT 開口 (ANSI/ASME B1.20.1)
XF-EVC 天花板安裝，帶有兩個或三個 3/4” NPT 開口
XF-EVJ 壁掛式安裝，帶有兩個 3/ 4” NPT 開口
可根據要求提供更多開口和/或其他尺寸的螺紋。
三種不同尺寸的型號（EV50、EV100、EV200）提供了完整的產品系列，可滿足空間或高能見度等各種需求。
XF-EV xenon stroboscopic series XF-EV find uses in both fixed and mobile alarm and warning systems. The stainless steel AISI 316L version is also used in offshore plants. The standard version consists of a body made of aluminium with a low copper content and a borosilicate glass part with high mechanical resistance and high temperature resistance.
The signals are made by using strobe xenon lamps with high optical results in terms of consumption, thanks also to the available wattages: 6J, 12J, 16J, 18J, 32J.
The electronic circuit has a microprocessor that controls the frequency of flashing and a capacitor that drives the lamp.
The different colors of the shell (red, yellow, orange, green, blue, transparent) allow the various requirements of installations to be met. LED strobe lamps are also available.
The optical unit is equipped with an E27 connection for rapid substitution.
Three models are available:
XF-EVA hanging installation with one 3/4” NPT openings (ANSI/ASME B1.20.1)
XF-EVC ceiling installation with two or three 3/4” NPT openings
XF-EVJ wall installation with two 3/4” NPT openings
More openings and/or other size of threads can be supplied on request.
The three models of different dimensions (EV50, EV100, EV200) provide a complete range to cover a variety of requirements such space or high visibility.
AES頻閃燈XF-EV系列其他常用型號：
AES XF-EVA50
AES XF-EVA100
AES XF-EVA200
AES XF-EVC-50
AES XF-EVC100
AES XF-EVC200
AES XENON STROBE NEW + ORIGINAL+ ONE YEAR WARRANTY
