TPL VISION光源SDOMEII-80-630介紹
Specification | ||
sdoMe ii 80 | sdoMe ii 130 | |
electronics | ||
Power supply | 24 vdc ±10% | |
functioning mode | continuous or strobe according to wiring | |
rising time | 10 μs | |
falling time | 10 μs | |
wiring | remote m12 4 poles male connector | |
max. consumption 630 & 880 nm | 4.2 w | |
max. consumption other colors | 8.6 w | |
optics | ||
colour | white, red, green, blue, infrared | |
number of leds | 96 | |
Mechanics | ||
dimensions | ? int : 74 mm ‐ ? ext : 150 mm | ? int : 125 mm ‐ ? ext : 201 mm |
Height | 69 mm | 94 mm |
visualisation window | ? 30 mm | ? 35 mm |
clips system | ? 20 mm, ? 15 mm, ? 10 mm, ? 5 mm | |
weight | 170 g | 230 g |
body materials | aluminum and abS | |
fixing | 3 m5 screws | |
environment | ||
operating temperature | 0 - 40°c | |
Storage temperature | 0 - 60°c | |
iP protection | iP 30 | |
labels | roHS-ce-weee | |

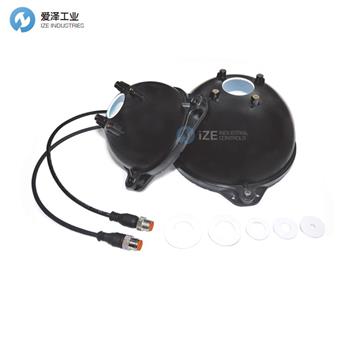

TPL VISION光源SDOMEII產品介紹
配備新的LED，SMALL SDOME II的照明功率比以前的白色和紅色LED（WHI和630）高4至5倍。 SMALL SDOME II提供了漫反射和均勻的間接照明，可減少反射并在彎曲和發亮的表面上實現可靠的質量控制過程。這是條形碼和2D代碼讀取的理想照明。得益于巧妙的剪輯系統，可以輕松地自定義圓頂頂部的孔，以使其完美地適合相機的鏡頭。 SMART SDOME有兩種尺寸（80厘米和130厘米）
II符合包括連接（M12連接器）在內的工業標準。
Equipped with new leds, the SMALL SDOME II gets a lighting power 4 to 5 times higher than the previous version used to have for white and red leds (WHI & 630). The SMALL SDOME II offers a diffuse and homogeneous indirect lighting that lessen reflections and enable a reliable quality control process on curved and shiny surfaces. This is the ideal lighting for bar codes and 2D codes reading. Thanks to the ingenious clipping system, the hole located on the top of the dome can be easily customized, so as to fit the camera’s lens perfectly. Available in two sizes (80 cm an 130 cm), the SMALL SDOME
II is compliant with industrial standards, including connection (M12 connector).

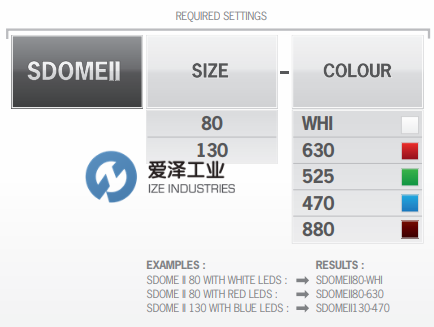

TPL VISION光源SDOMEII選型參考
TPL VISION光源SDOMEII其他常見型號：
TPL VISION SDOME II 80
TPL VISION SDOME II 130
TPL VISION SDOMEII-80-630
TPL VISION Backlight NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業成立于2010年，定位于向先進制造工業提供高端制造技術和設備。代理經營世界先進的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于TPL VISION光源SDOMEII-80-630的疑問，請隨時與我們溝通（021-31006702）。我們將盡全力解決您的問題。
If you have any question for TPL VISION products, please feel free to dial 0086-21-3100 6702/ send request email to sales@ize-industries.com / browse our website: jjxdch.cn.
TPL VISION光源SDOMEII-80-630產品參數及選型參考
