CCS光源LDR2-50RD2產品參數
Specification | |
LED color | Red |
Peak wavelength | 630 nm typ. |
Dimensions | Outer diameter 50 mm, Inner diameter 28 mm, Height 16 mm |
Input voltage | 24VDC |
Power consumption | 3.1 W max. |
Input connector | SMR-03V-B |
Polarity & signal | 1: (+), 2: NC, 3: (-) |
Cable length | 0.3m |
Case material | Aluminum alloy |
Operating temperature and humidity | Temperature: 0 to 40℃, Humidity: 20% to 85%RH (with no condensation) |
Storage temperature and humidity | Temperature: -20 to 60℃, Humidity: 20% to 85%RH (with no condensation) |
Cooling method | Natural air-cooling |
Conformed standards | CE, RoHS, IEC 62471 (Exempt) |
Weight | 50 g max. |
Accessories | Handling Precautions |
CCS光源LDR2-50RD2產品介紹
該照明單元發出紅光，外徑為50毫米，內徑為28毫米，高度為16毫米。

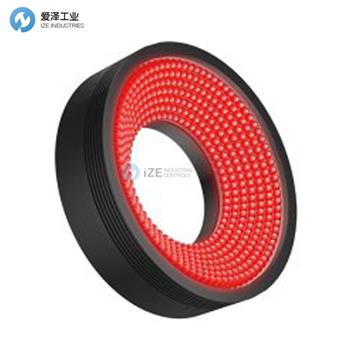

This Light Unit emits red light and has an outer diameter of 50 mm, an inner diameter of 28 mm, and a height of 16 mm.
CCS光源LDR2系列其他常見型號：
CCS LDR2-32RD2
CCS LDR2-32SW2
CCS LDR2-32BL2
CCS LDR2-32GR2
CCS LDR2-42RD2
CCS LDR2-42SW2
CCS LDR2-42BL2
CCS LDR2-42GR2
CCS LDR2-50RD2
CCS LDR2-50RD2-WD
CCS LDR2-50SW2
CCS LDR2-50BL2
CCS LDR2-50GR2
CCS Manual Ring Lights NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業成立于2010年，定位于向先進制造工業提供高端制造技術和設備。代理經營世界先進的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于CCS光源LDR2-50RD2的疑問，請隨時與我們溝通（021-31006702）。我們將盡全力解決您的問題。
