KIEPE錯位開關HES系列技術參數
TECHNICAL DATA | |
Designation | Misalignment Switch Type HES |
Type of actuation | Bidirectional |
Complies with | DIN EN 60204-1 |
Suited for | Control units and systems in accordance with DIIN EN 60204 |
Mechanics | |
Enclosure | Aluminum GK-AISi 12 |
Finish | DD-paint yellow, RAL 1004 |
Actuating lever | Stainless steel; ? 50 mm, ball-beared roller |
Mounting | 2 slotted holes for M8-screws |
Installation position | Horizontal, tilt angle up to about 30° |
Deflection of roller lever | Maximum +/-75° |
Mechanical reliability | > 10,000 actuations |
Weight | 2.2 kg |
Electrical system | |
Switching system | 2 changeover contacts (SPDT with snap action); cam operated positive-opening switches |
Switching range | 5°…15° and 15°…35°, adjustable, factory set at 10 degrees each |
Cable entry | Threaded holes 2x M25x1,5 with each 1x screwed cable gland: sealing area ??11mm to ??16mm; 1x dummy screw |
Utlization category | AC-15: 230V; 1.5A |
Connection cross section | 1mm2 to 2,5mm2 |
Protective conductor connection | in the casing; M4; Class I: protective earthing |
Rated insulation voltage Ui | 250V |
Rated impulse withstand voltage Uimp | 2.5kV; degree of polution III |
Conventional thermal current Ith | 6A |
Contact reliability | 30,000 operations with 100% Ie |
Ambient conditions | |
Permissible ambient temperature | –25°C… +70°C |
Extended ambient temperature | –40°C… +70°C (type HES 7xx) |
Protection rating | IP65 / IP67 in accordance with EN 60529 |
KIEPE錯位開關HES系列介紹
HES 型 KIEPE 皮帶錯位開關專為重型應用而設計，根據 DIN EN 620 要求用于固定皮帶輸送機，以盡可能降低意外操作的風險。 傳送帶的橫向移動受到監控，并且在傳送帶出現不可接受的漂移的情況下關閉傳送帶，傳送帶監控可以防止傳送帶和機器的損壞和破壞。
Kiepe 型 HES 錯位開關符合低電壓指令 2014/35/EU。 它具有堅固的鋁制外殼，并配備 2 個帶速動功能的強制轉換觸點，帶有兩個可調節的開關點。 注意：錯位開關只能用于控制電路。

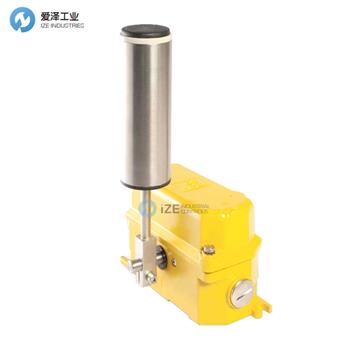

KIEPE belt misalignment switches of type HES are designed for heavy duty application and used at fixed belt conveyors according to DIN EN 620 requirements in order to keep the risk of unintentional operation as low as possible. The lateral movement of the conveyor belt is monitored and by switching off the conveyor in the case of unacceptable belt drift, the belt monitoring prevents damage and destruction of the belt and the machine.
The Kiepe type HES misalignment switch complies with the Low Voltage Directive 2014/35/EU. It features a robust aluminum housing and is equipped with 2 force-actuated changeover contacts with snap-action function with two adjustable switching points. Note: The misalignment switch may only be used in control circuits.

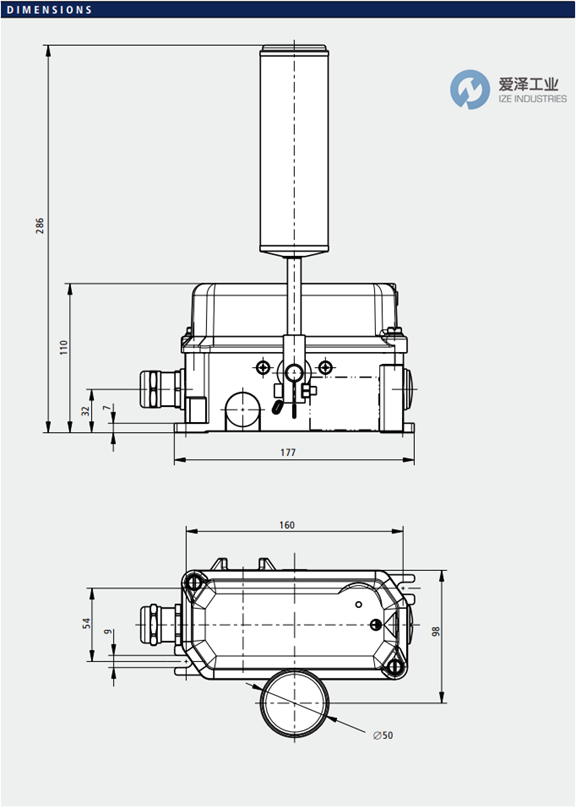

KIEPE錯位開關HES系列技術尺寸
KIEPE錯位開關HES系列其他常用型號：
KIEPE HES011
KIEPE HES017
KIEPE HES711
