WIEDEMANN空氣閥LV系列技術參數
Volumetric flow rate range: | 50-720 mn3/h |
Intake air pressure: | 50-120 mbar ( special versions up to approx. 160 mbar ) |
Operating voltages: | 24 VDC ( = ) -110VAC -230VAC |
Power consumption: | 2 x 5 VA for two-stage type |
Opening time: | 1 to 4 sec.(depending on nominal size and setting) |
Closing time | 2 to 8 sec.(depending on nominal size and setting) |
Setting ranges: | 1.stage: approx. 10% to 60 % (variable) |
Setting ranges: | 2.stage: approx. 60% to 100 % (variable) |
Setting ranges: | Bypass：approx. 0% to 10 % (variable) |
Setting ranges: | from LV 100: approx. 0% to 7 % (variable) |
Diaphragm lid mounting positions: | 90°，180°，270°and 360° |
Operating temperature: | from -10℃ to + 60℃ |
Mounting position: | no restriction |

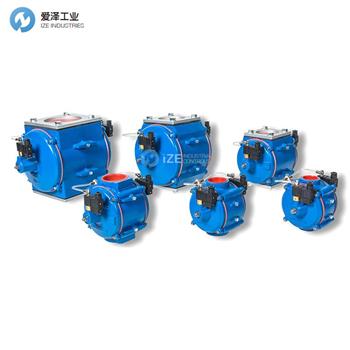

WIEDEMANN空氣閥LV系列介紹
尺寸從 LV 40 到 LV 150 的燃燒空氣閥，用于控制工業燃燒器設備的燃燒空氣供應。 閥門可以安裝在任何方向。
緊湊、堅固的工業設計，適合通用。
可配備可選配件，如燃燒器控制器、立式壓力表（Wiedemann VHM ...）等。
Combustion air valves in sizes from LV 40 to LV 150 for controlling the combustion air supply to industrial burner equipment. Valves can be mounted in any orientation.
Compact, rugged industrial design for universal use.
Can be fitted with optional accessories such as burner controllers, vertical pressure gauges(Wiedemann VHM …), etc.

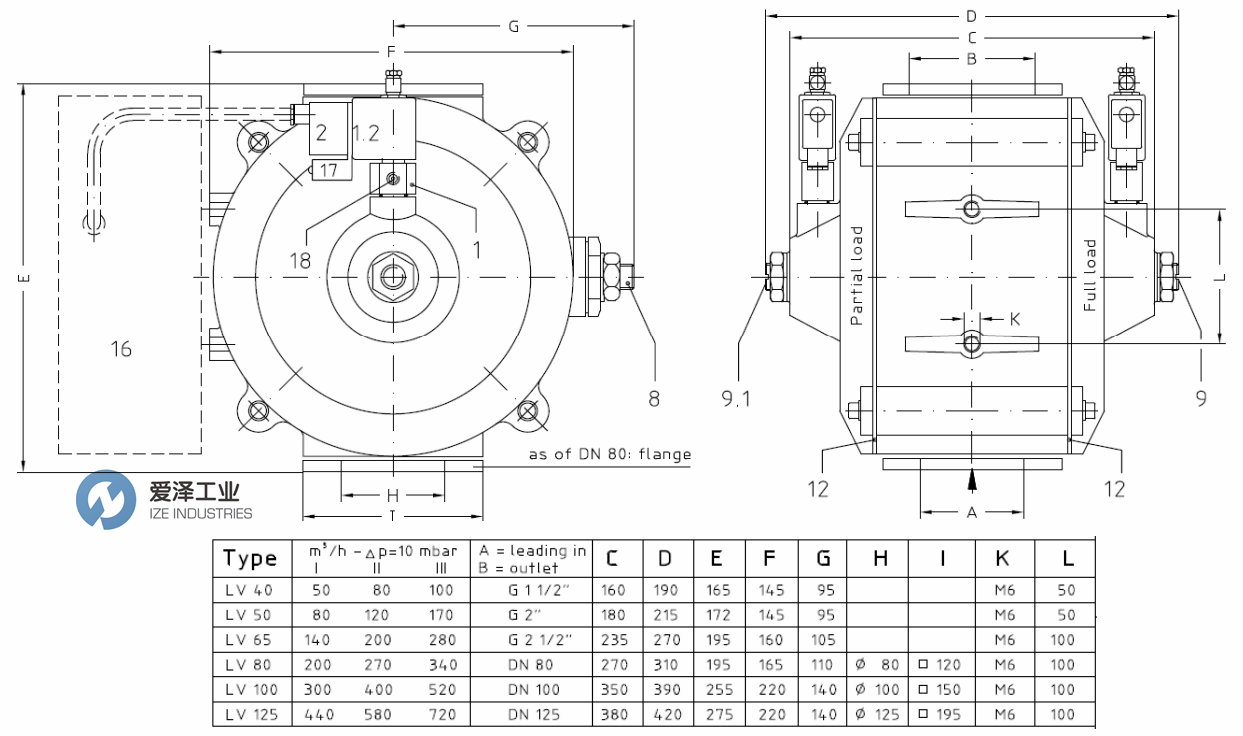

WIEDEMANN空氣閥LV系列技術尺寸
WIEDEMANN空氣閥LV系列其他常用型號
WIEDEMANN LV40-I
WIEDEMANN LV40-II
WIEDEMANN LV40-III
WIEDEMANN LV50-I
WIEDEMANN LV50-II
WIEDEMANN LV50-III
WIEDEMANN LV65-I
WIEDEMANN LV65-II
WIEDEMANN LV65-III
WIEDEMANN LV80-I
WIEDEMANN LV80-II
WIEDEMANN LV80-III
WIEDEMANN LV100-I
WIEDEMANN LV100-II
WIEDEMANN LV100-III
WIEDEMANN LV125-I
WIEDEMANN LV125-II
WIEDEMANN LV125-III
WIEDEMANN valve NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業成立于2010年，定位于向先進制造工業提供高端制造技術和設備。代理經營世界先進的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于WIEDEMANN空氣閥LV40-II的疑問，請隨時與我們溝通（021-31006702）。我們將盡全力解決您的問題。
If you have any question for WIEDEMANN products, please feel free to dial 0086-21-3100 6702/ send request email to sales@ize-industries.com / browse our website:jjxdch.cn.
WIEDEMANN空氣閥LV系列LV40-II介紹
