IREM點火器AS8030產品參數
Specification | |
Xenon lamp power range [W] | ≤1600 |
MODEL | AS-8030 |
Item number | 02836080 / 02836081 |
TECHNICAL DATA | |
AC nominal voltage' [V] | 230 / 115 |
Input voltage range [V] | 207-253 / 103,5-126.5 |
Frequency [Hz] | 50/160 |
Frequency range [Hz] | 47-63 |
Max. input current during ignition [A] | 1.2 / 1.8 |
H.V. pulses amplitude [kV] | ≤30 |
No. of pulses per half cycle | ≤16 |
Lamp current at TAMB ≤55℃ [A] | ≤80 |
Conformity | CE |
Degree of protection | IPOO |
Isolation class | CLI |
Storage temperature [℃] | -20 to +60 |
Weight [kg] | 1.5 |
Dimensions AxBxHxd [mm] | 75x64x145x23 |
Figure | 4 |
Time delay board [A1] | not provided |

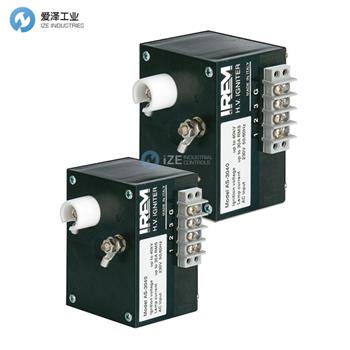

IREM點火器AS8030產品介紹
全套高壓點火器，專為150W至15000W的短弧氙燈設計。
IREM高頻疊加點火器是為交流電源設計的，適合大多數應用。這些不對稱點火器的特點是設計緊湊、熱穩定性高和電偶絕緣，并可配備多種計時板，使其適用于多種應用。
無后綴“A”的點火器適用于手動點火。
帶有后綴“A”的點火器配有一個內置的定時板，用于自動和/或短時間點火，以避免在燈出現故障時損壞點火器。
通過選擇與各種整流器的電氣特性相適應的時序板閾值電壓，可以實現燈的短時間無噪聲點火。此外，半周期脈沖較少的點火器可用于復雜的電子設備，以減少射頻干擾。
AS系列符合燈具制造商的建議，因為它們確保在任何冷卻條件下都能立即正確點火。
這些裝置應該安裝在靠近燈的地方，但要隔熱。高壓引線必須盡可能短，并仔細絕緣，以防止電暈放電和降低沖擊能量。
它們必須接地以適當抑制干擾。
A complete range of high voltage igniters expressly designed to strike short arc xenon lamps from 150W to 15000W.
IREM high frequency superimposing igniters have been designed for AC mains supply to suit most applications. These asymmetrical igniters are characterized by a compact design, high thermal stability and galvanic insulation, and can be equipped with a wide range of timing boards that make them suitable for a wide variety of applications.
The igniters without suffix “A” are suitable for manual ignition.
The igniters with suffix “A” are fitted with a built-in timing board for automatic and/or short-timed ignition, to avoid damaging the igniter in case of faulty lamp operation.
A short and noiseless lamp ignition can be achieved by selecting the timing board threshold voltage, as to be compatible with the electrical characteristics of every kind of rectifier. Moreover, igniters with few pulses for half cycle are available for use with sophisticated electronic appliances, in order to reduce R.F. interferences.
AS series meet the recommendations of lamp manufacturers, as they ensure immediate and correct lamp ignition in any cooling condition.
These units should be installed close to the lamp, but thermally shielded from it. The high voltage lead must be as short as possible and carefully insulated to prevent corona discharge and reduction in strike energy.
They must be grounded for proper interferences suppression..
IREM點火器AS系列其他常見型號：
IREM AS-1530
IREM AS-3040
IREM AS-8030
IREM AS-16040
IREM AS-16040A
IREM ASD-16040A
IREM ASN-1000
IREM ASB-1000A
IREM AS—40045A
IREM high voltage igniters expressly NEW + ORIGINAL+ ONE YEAR WARRANTY
