KROM SCHRODER電磁閥VAS系列產品參數
Technical data | |
Gas types | natural gas, LPG (gaseous), biologically produced methane (max. 0.1 %-byvol. H2S) or clean air; other gases on request. The gas must be clean and dry in all temperature conditions and must not contain condensate. |
CE and FM approved, UL listed, max. inlet pressure pu | 500 mbar (7 psig) |
FM approved, non operational pressure | 700 mbar (10 psig) |
ANSI/CSA approved | 350 mbar (5 psig). |
Adjustment of the start gas rate | 0 to approx. 70%. |
Opening times | VAS../N quick opening: ≤ 1 s; VAS../L slow opening: up to 10 s. |
Closing time | VAS../N, VAS../L quick closing: < 1 s. |
Medium and ambient temperatures: | -20 to +60°C (-4 to +140°F),no condensation permitted. |
Safety valve | Class A Group 2 pursuant to EN 13611 and EN 161 |
Factory Mutual (FM) Research Class | 7400 and 7411,ANSI Z21.21 and CSA 6.5 |
Mains voltage | 230 V AC, +10/-15%, 50/60 Hz, 200 V AC, +10/-15%, 50/60 Hz, 120 V AC, +10/-15%, 50/60 Hz, 100 V AC, +10/-15%, 50/60 Hz, 24 V DC, ±20%. |
Cable gland | M20 x 1.5. |
Electrical connection | cable with max. 2.5 mm2 (AWG 12) or plug with socket to EN 175301-803. |
Enclosure | IP 65. |
Duty cycle | 100%. |
Power factor of the solenoid coil | cos φ = 0,9. |
Switching frequency | VAS../N 1 – 8, VCS..N 1 – 8:max. 30 x per minute. VAS../L, VCS..L: there must be a period of 20 seconds between switching off and on again so that the damping is fully effective. |
Valve housing | aluminium |
Valve seal | NBR |
Connection flanges | VAS/VCS 1 – 3 with internal thread:Rp pursuant to ISO 7-1, NPT pursuant to ANSI/ASME; VAS/VCS 2 – 9 with ISO flange (pursuant to ISO 7005) PN 16, with ANSI flange pursuant to ANSI 150 |

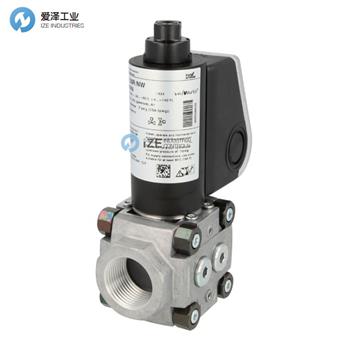

KROM SCHRODER電磁閥VAS系列產品介紹
Valvario VAS系列常閉電磁閥可保護和控制向燃氣燃燒器和燃氣用具供應的空氣和氣體。適用于鋼鐵，玻璃和陶瓷行業各個領域的氣體控制和安全系統，也用于商業熱產生應用。
模塊化設計節省了空間和管道工作。主燃氣閥，先導閥，調節器和壓力開關均可以直接堆疊安裝，僅占用一個小的模塊空間。可變的安裝板可輕松減小輸入/輸出和法蘭尺寸。減少了在庫存中保留多種尺寸的需求。
規格
緊湊的設計和易于安裝
最大入口壓力為500 mbar（500 hPa / 7 psig）
無汞壓力開關具有測試端口和<25％的死區
帶內置視覺位置指示器的閉合開關證明
經過EC型式測試和認證，F(xiàn)M，CSA，UL和AGA認證
Valvario VAS series normally closed solenoid valves safeguard and control the air and gas supply to gas burners and gas appliances. For use in gas control and safety systems in all sectors of the iron, steel, glass and ceramics industries, also in commercial heat generation applications.
Modular design saves space and piping work. The main gas valve, pilot valve, regulator and pressure switch are all available for direct stack mounting for a single small modular footprint. Changeable mounting plates make it easy to reduce input/output and flange sizes. Reduces need to keep multiple sizes in inventory.
Key Specifications
Compact design and easy installation
Max inlet pressure of 500 mbar (500 hPa/7 psig)
Mercury-free pressure switch has test port and <25% deadband
Proof of closure switch with integral visual position indicator
EC type-tested and certified, FM, CSA, UL, and AGA approved

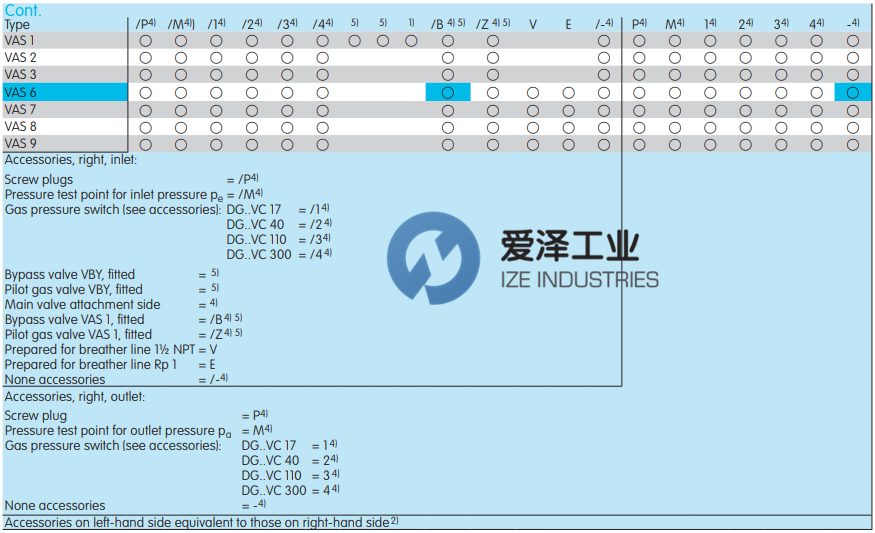

選型參考
KROM SCHRODER電磁閥VAS系列其他常見型號：
KROM SCHRODER VAS1T15N/NK
KROM SCHRODER VAS110R/NW
KROM SCHRODER VAS110R/NWSR
KROM SCHRODER VAS110R/NKSR
KROM SCHRODER VAS110R/NQ
KROM SCHRODER VAS1T10N/NQ
KROM SCHRODER VAS115R/NW
KROM SCHRODER VAS115R/NWSR
KROM SCHRODER VAS115R/NK
KROM SCHRODER VAS115R/NKSR
KROM SCHRODER VAS115R/NQ
KROM SCHRODER Solenoid valves NEW + ORIGINAL+ ONE YEAR WARRANTY
