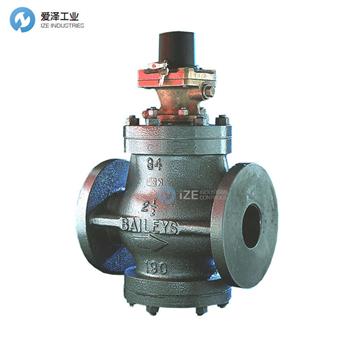

BAILEY減壓閥2044-80-0.7-7.0技術參數
Figure Number | 2044 |
Size Range mm | 65–150 |
Connections | Flanged |
MATERIALS | |
Body | Cast Iron |
Pilot Top | Bronze |
Main Valve Trim | St Steel |
PRESSURE Barg | |
Inlet Min-Max | 0.7–16π§ |
Outlet Min-Max | 0.07–15π§ |
TEMP. Deg.C Min-Max | –20 to +220 |
BAILEY減壓閥G4系列介紹
Bailey 的“G4”系列先導式減壓閥為蒸汽、空氣和精細工業氣體等重要服務的控制提供了更多的選擇。“G4”是一種自力式、整體安裝的先導式減壓閥，設計極其緊湊且用途廣泛?！癎4”已成為控制精度、高性能、高質量和可靠性的象征?！癎4”樹立了所有其他減壓閥都力求達到的標準。
? 精確，能夠在 +/-1?2% 范圍內調節出口壓力。
? 整體先導，設計極其緊湊。
? 自啟動，無需外部電源。
? 完全平衡，無論入口壓力如何波動，控制都穩定。
? 正向關閉，確保無泄漏運行。
? 可調性，尺寸、材料和連接選擇范圍廣。
? 互換性，許多組件可以在各種類型和尺寸之間互換，因此易于調整，金屬/軟閥座，高壓/低壓。
? PED，所有閥門均完全符合 PED。
The Bailey ‘G4’ Series of pilot operated pressure reducing valves offers a comprehensive range for control of vital services such as steam, air and fine industrial gases.The ‘G4’ is a self acting, integral mounted pilot operated pressure reducing valve, which is designed to be extremely compact and versatile. The ‘G4’ has become a symbol for accuracy of control, high performance, quality and reliability. The ‘G4’ has set the standard which all other pressure reducing valves strive to achieve.
? Accuracy,capable of regulating outlet pressure within +/-1?2%.
? Integral pilot, extremely compact design.
? Self actuated, no external power source required.
? Fully balanced, stability of control regardless of inlet pressure fluctuations.
? Positive shut off, ensures leak free operation.
? Rangeability, wide choice of sizes, materials and connections.
? Interchangeability, many components are interchangeable between the various types and sizes, therefore easily adapted, metal/soft seats, high/low pressure.
? PED,all valves are in full compliance with the PED.
BAILEY減壓閥G4系列其他常用型號：
BAILEY 2044-65-0.7-7.0
BAILEY 2044-80-0.7-7.0
BAILEY 2044-100-0.7-7.0
BAILEY 2044-65-2.8-10.5
BAILEY 2044-80-2.8-10.5
BAILEY 2044-100-2.8-10.5
BAILEY VALVE NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業成立于2010年，定位于向制造工業提供高端制造技術和設備。代理經營世界優質的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于BAILEY減壓閥2044-80-0.7-7.0的疑問，請隨時與我們溝通（021-31006702）。我們將盡全力解決您的問題。
If you have any question for BAILEY products, please feel free to dial 0086-21-3100 6702/ send request email to sales@ize-industries.com / browse our website:jjxdch.cn.
