ELNEC編程器

請注意:照片可能并不是實際產品,具體請參閱標題和產品規格及所有細節描述。
產品品牌:
型號:BEEPROG2

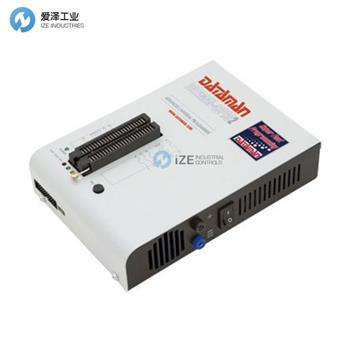

ELNEC編程器BEEPROG2
預估貨期:
關  鍵  詞:ELNEC編程器BEEPROG2DATAMAN-48PRO2BeeProg2APDATAMA
相似產品:
是否有問題?聯系我們工作人員
  郵件聯系

ELNEC編程器BEEPROG2 DATAMAN-48PRO2介紹

extremely fast programming.

Sustainable programming speed greater than 5 MBytes per second.

Programs 2 GB eMMC NAND Flash in less than 365 sec.

48-pins powerful pindrivers, no adapter required for any DIL devices

ISP connector for in-circuit programming

dual connection to PC: USB (up to 480 Mbit/s) or parallel (printer) port

USB 2.0 (high speed, full speed) and 1.1 compatible interface

alternatively high-speed IEEE 1284 (ECP/EPP) printer-port (LPT) interface

comfortable and easy to use control program, works with all versions of MS Windows from Windows XP to Windows 10 (32-bit and 64-bit*)

Multiprogramming possible by attaching more programmers to one PC



極快的編程。

可持續編程速度大于每秒 5 MB。

在不到 365 秒的時間內編程 2 GB eMMC NAND 閃存。

48 針功能強大的引腳驅動器,任何 DIL 設備都不需要適配器

用于在線編程的 ISP 連接器

與 PC 的雙重連接:USB(高達 480 Mbit/s)或并行(打印機)端口

USB 2.0(高速、全速)和 1.1 兼容接口

或者高速 IEEE 1284 (ECP/EPP) 打印機端口 (LPT) 接口

舒適且易于使用的控制程序,適用于從 Windows XP 到 Windows 10(32 位和 64 位*)的所有 MS Windows 版本

通過將更多編程器連接到一臺 PC 可以實現多道程序設計

愛澤工業(ize-industries)并不是本網站所列所有產品的授權代理商或經銷商。 本網站使用的所有產品名稱,商標,品牌等均屬于各自品牌廠家所有。 本網站在產品或圖片描述中,出現具有這些名稱,商標,品牌等信息的產品僅用于識別目的,并非旨在表明任何與持有者的從屬及授權關系。

ELNEC編程器產品介紹

BeeProg2 is next member of USB/LPT-compatible, MS Windows (from Windows XP to Windows 10, 32-bit and 64-bit) based Elnec universal programmers, built to meet the strong demand of the small manufacturing and developers community for the fast and reliable universal programmer.

BeeProg2 programmer is the improvement of BeeProg+ programmer, difference is much higher programming speed (up to 10x) of high-capacity memories, due to more powerful programming core (FPGA) inside.

Supports all kinds of types and silicon technologies of today and tomorrow programmable devices without family-specific module. You have freedom to choose the optimal device for your design. Using built-in in-circuit serial programming (ISP) connector, the programmer is able to program ISP capable chips in circuit.

BeeProg2 isn't only a programmer, but also a tester of TTL/CMOS logic ICs and memories. Furthermore, it allows generation of user-definable test pattern sequences.

Extremely fast programming due to high-speed FPGA driven hardware and execution of time-critical routines inside of the programmer. As a result, when used in manually-operated production, this one-socket-programmer in most cases waits for an operator.

BeeProg2 interfaces with any IBM PC compatible personal computers, running MS Windows OS, through USB (2.0 HigSpeed) port or any standard parallel (printer) port. Support of both USB/LPT port connection gives you the choice to connect the BeeProg2 programmer to any PC, from latest notebook to older desktop without USB port.



BeeProg2 是 USB/LPT 兼容、基于 MS Windows(從 Windows XP 到 Windows 10、32 位和 64 位)的 Elnec 通用編程器的下一個成員,旨在滿足小型制造商和開發人員社區對快速和可靠的通用程序員。

BeeProg2 編程器是 BeeProg+ 編程器的改進,不同之處在于大容量存儲器的編程速度更高(高達 10 倍),由于內部編程內核(FPGA)更強大。

支持當今和未來可編程設備的各種類型和硅技術,無需特定的模塊??梢宰杂傻剡x擇最佳設備。使用內置的在線串行編程 (ISP) 連接器,編程器能夠在電路中對具有 ISP 功能的芯片進行編程。

BeeProg2 不僅是一個編程器,還是一個 TTL/CMOS 邏輯 IC 和存儲器的測試器。此外,它還允許生成用戶可定義的測試模式序列。

由于高速 FPGA 驅動的硬件和在程序員內部執行時間關鍵的例程,因此編程速度極快。因此,當用于手動操作的生產時,這種單插槽編程器在大多數情況下需要等待操作員。

BeeProg2 通過 USB (2.0 HigSpeed) 端口或任何標準并行(打印機)端口與任何 IBM PC 兼容個人計算機連接,運行 MS Windows 操作系統。支持 USB/LPT 端口連接,您可以選擇將 BeeProg2 編程器連接到任何 PC,從最新的筆記本電腦到?jīng)]有 USB 端口的舊臺式機。



ELNEC編程器其他常用型號:

ELNEC BEEPROG2

ELNEC DATAMAN-48PRO2

ELNEC BeeProg3

ELNEC BeeProg2AP

ELNEC BeeProg2C

ELNEC SmartProg2



ELNEC Compiler NEW + ORIGINAL+ ONE YEAR WARRANTY
