POWER-GENEX定位器EPR-WN2SN3NTR技術參數
Code | EPR-WN2SN3NTR |
Actuator action | R - Rotary type |
Protection Class: | W - Weatherproof to IP66 |
Feedback Shaft | N - Rotary type NAMUR shaft (direct mounting) |
Gauge | 2 - 10 bar (150psi) |
Pilot Valve Orifice | S - Standard(actuator volume over 180?) |
Position Feedback (only for weatherproof type) | N - None |
Connection Threads (pneumatic – electrical) | 3 - PT(Rc) 1/4 – PF(G) 1/2 (standard) |
Dome Indicator (only for EPR) | N - Flat indicator (standard) |
Operating Temperature | T - Ex ia IIC : -20 ~ +70℃ (T6) |
Mounting Bracket | R - DIN VDI/VDE 3845 (for EPR-NAMUR) |

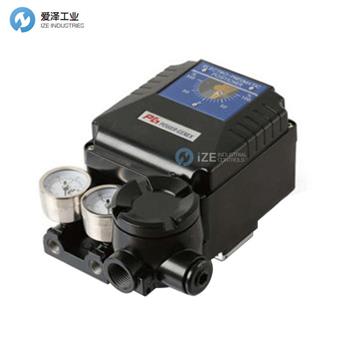

POWER-GENEX定位器EPR系列介紹
EPR 系列是本質安全型電動氣動定位器，可用于危險區域（1 區），由扭矩電機驅動，輸入信號為 4-20mA @ 24VDC 電源，用于操作控制閥
The EPR series are the intrinsically safe electro-pneumatic positioners that can be used in a hazardous area (Zone 1) and worked by a torque motor with 4-20mA input signals @ 24VDC power supply for operation of the control valves

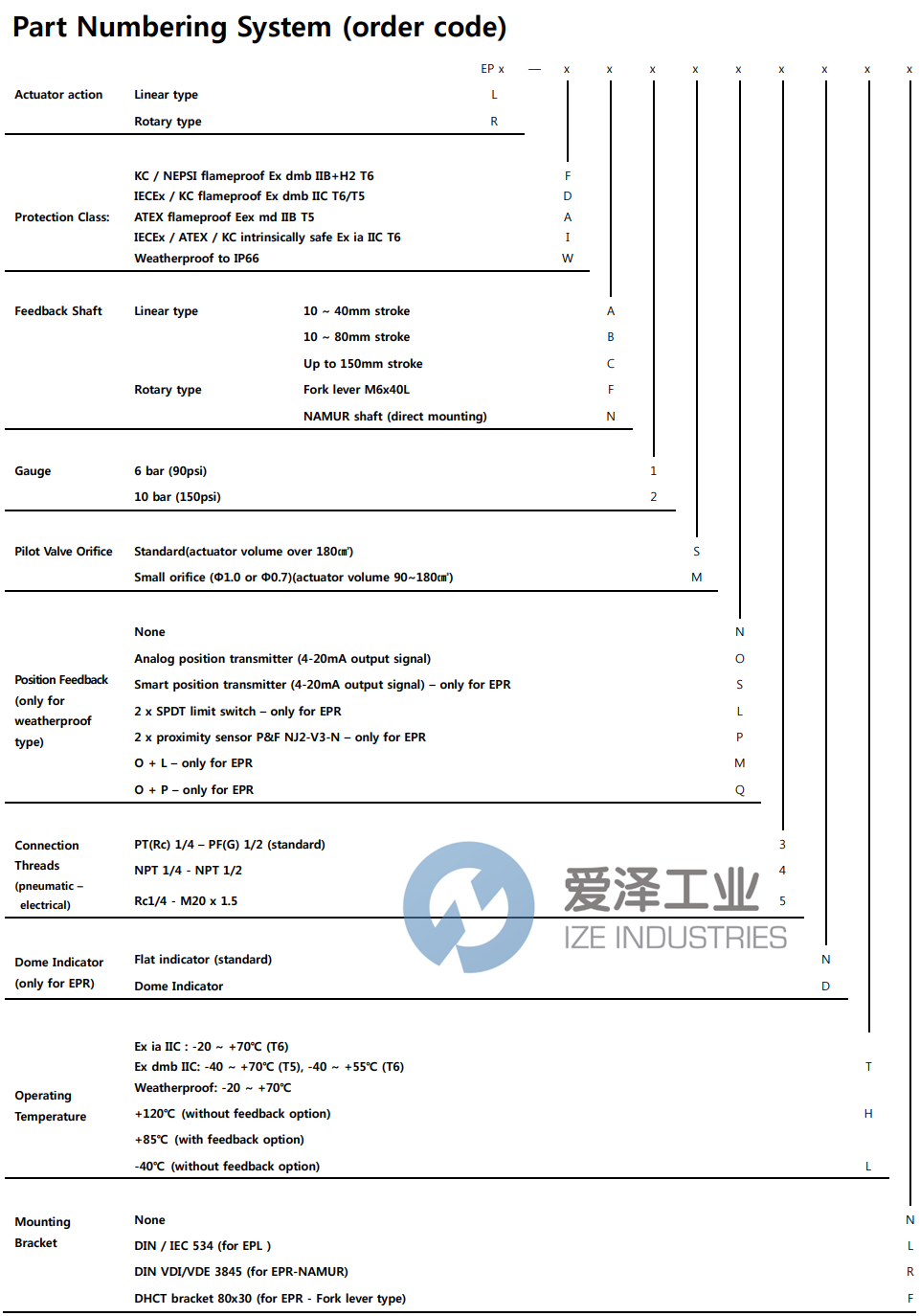

POWER-GENEX定位器EPR系列選型
POWER-GENEX定位器EPR系列其他常用型號：
POWER-GENEX EPR-IN2SO3NTR
POWER-GENEX EPR-WN2SO3NTR
POWER-GENEX EPR-IA1SO3NTR
POWER-GENEX EPR-WN2SN3NTR
POWER-GENEX EPR-WN2SL3NTR
POWER-GENEX POSITIONER NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業成立于2010年，定位于向制造工業提供高端制造技術和設備。代理經營世界優質的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于POWER-GENEX定位器EPR-WN2SN3NTR的疑問，請隨時與我們溝通（021-31006702）。我們將盡全力解決您的問題。
If you have any question for POWER-GENEX products, please feel free to dial 0086-21-3100 6702/ send request email to sales@ize-industries.com / browse our website:jjxdch.cn.
POWER-GENEX定位器EPR系列EPR-WN2SN3NTR技術參數及選型
