CONTROL TECHNIQUES驅動器C200-06400470A10100AB100技術參數
Product Code (380/480 Vac +/-10%) | C200-06400470A10100AB100 |
Supply Phases | 3 |
Frame Size | 6 |
Heavy Duty | |
Max Continuous Current (A) | 47 |
Motor Shaft Power (kW) | 22 |
Motor Shaft Power (hp) | 30 |
Normal Duty | |
Max Continuous Current (A) | 63 |
Motor Shaft Power (kW) | 30 |
Motor Shaft Power (hp) | 40 |

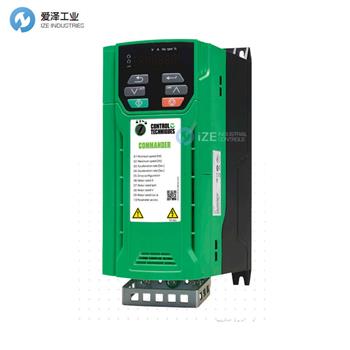

CONTROL TECHNIQUES驅動器C200系列介紹
Commander C200 在開環矢量或無傳感器電機控制 (RFC-A) 中提供更高的機器性能。
特征：
? 通過許多可用的現場總線進行靈活集成
? 邏輯塊、PID、電機電位器
? 熱敏電阻輸入
? 板載 PLC (CoDeSys)
? SD 卡選項用于保存和復制參數和/或 PLC 程序
? 24 V 備份選項
? RS485 / Modbus RTU 選項
The Commander C200 provides maximum machine performance in open loop vector or sensorless motor control (RFC-A). Characteristics:
? Flexible integration through many available fieldbuses
? Logic blocks, PID, Motor pot
? Thermistor input
? PLC onboard (CoDeSys)
? SD card option for saving and copying parameters and/or PLC programs
? 24 V backup option
? RS485 / Modbus RTU option

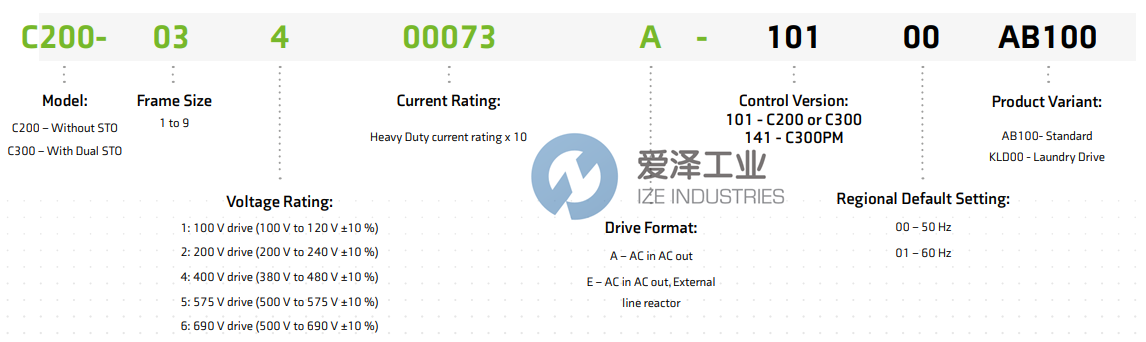

CONTROL TECHNIQUES驅動器Commander C系列選型
CONTROL TECHNIQUES驅動器C200系列其他常用型號：
CONTROL TECHNIQUES C200-04400135A10100AB100
CONTROL TECHNIQUES C200-04400170A10100AB100
CONTROL TECHNIQUES C200-05400270A10100AB100
CONTROL TECHNIQUES C200-05400300A10100AB100
CONTROL TECHNIQUES C200-06400350A10100AB100
CONTROL TECHNIQUES C200-06400420A10100AB100
CONTROL TECHNIQUES C200-06400470A10100AB100
CONTROL TECHNIQUES C200-07400660A10100AB100
CONTROL TECHNIQUES C200-07400770A10100AB100
CONTROL TECHNIQUES C200-07401000A10100AB100
CONTROL TECHNIQUES C200-08401340A10100AB100
CONTROL TECHNIQUES C200-08401570A10100AB100
CONTROL TECHNIQUES C200-09402000A10100AB100
CONTROL TECHNIQUES C200-09402240A10100AB100
CONTROL TECHNIQUES C200-09402000E10100AB100
CONTROL TECHNIQUES C200-09402240E10100AB100
