SAMSON轉換器6111-0020121810110000.00技術參數
Order no. | 6111-0020121810110000.00 |
Type | 6111 |
Explosion | 0=Without |
Housing | 0=For rail mounting, 35 mm top-hat rail (DIN EN 60715) |
i/p module | 2=Type 6112 |
Input | 01=4 to 20 mA with switch-off electronics |
Volume booster | 2=II (output from 0.0 bar/0 psi) 2) |
Output | 18=Initial value 0.1 to 1.2 bar, span ?p 5.94 to 8.00 bar |
Direction of action | 1=Increasing/increasing |
Pneumatic connection | 0=6 mm outside diameter (screwed hose connection M10 x 1) |
Electrical connection | 1=Terminals for 0.5 to 2.5 mm2 wires |
Degree of protection | 1=IP 20 |
Temperature | 0=Tmin ≥–20 °C |
Sp. version | 0 0 0=Without |
SAMSON轉換器6111系列介紹
6111型 i/p 轉換器用于將直流輸入信號轉換為氣動輸出信號，用于測量和控制任務。i/p 轉換器由一個6109型或6112型i/p模塊和一個下游音量增強器組成。
i/p轉換器可用作導軌安裝單元或現場單元
輸入是 4 到 20 mA 或 0 或 20 mA 的與負載無關的直流電。輸出為0.2至1 bar的氣動信號或其他信號范圍可高達8 bar

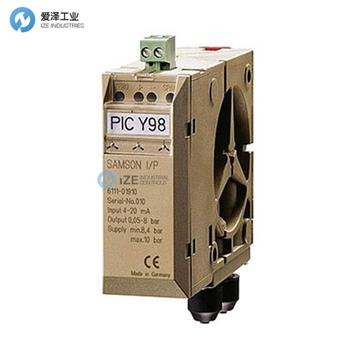

The Type 6111 i/p Converter is used to convert a direct current input signal into a pneumatic output signal for measuring and control tasks. The i/p converter consists of an Type 6109 or Type 6112 i/p Module and a downstream volume booster.
The i/p converter is available as a rail-mounting unit or field unit
The input is a load-independent direct current of 4 to 20 mA or 0 or 20 mA. The output is a pneumatic signal of 0.2 to 1 bar or other signal ranges up to max. 8 bar.
SAMSON轉換器6111系列其他常用型號：
SAMSON 6111-0020121810110000.00
SAMSON 6111-0020111311110000.00
SAMSON 6111-0020110311110000.00
SAMSON 6111-0020121810110000.00
SAMSON 6111-0020111712210000.00
SAMSON 6111-0020121711110000.00
SAMSON 6111-0020121511110000.00
SAMSON 6111-0020121810110000.00
SAMSON Converter NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業成立于2010年，定位于向制造工業提供高端制造技術和設備。代理經營世界優質的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于SAMSON轉換器6111-0020121810110000.00的疑問，請隨時與我們溝通（021-31006702）。我們將盡全力解決您的問題。
If you have any question for SAMSON products, please feel free to dial 0086-21-3100 6702/ send request email to sales@ize-industries.com / browse our website:jjxdch.cn.
