SIEMENS定位器760 P/E系列技術參數
Temperature Range: | |
760P without options | -40°C to +85°C (-40°F to +185°F) |
760P with high temperature option | -29°C to +149°C (-20°F to +300°F), Viton? input diaphragm |
760E without options | -40°C to +75°C (-40°F to +167°F) |
760P or E with Option Kit | Refer to product manual |
Ingress | NEMA 4X, IP65 |
Connections: | |
Pneumatic | 1/4 NPT |
Gauge | 1/8 NPT |
Electrical | 3/4 NPT or M25 |
Exhaust | 1/4 NPT |
Finish | Epoxy/Polyester Powder Coat |
Output Configuration | Single or Double-Acting |
Action | Direct or Reverse |
Supply Pressure | 150 psig maximum |
Air Consumption: | |
Standard Spool | 0.5 scfm |
Low Gain Spool | 0.5 scfm |
High Flow Capacity Spool | 1.0 scfm typical |
Flow Capacity (at 60 psi with 25% drop) | |
Standard Spool | 9 scfm (Cv = 0.3) |
Low Flow Spool | 9 scfm (Cv = 0.3) (1/2 pressure gain of standard) |
High Flow Spool | 18 scfm (Cv = 0.6) |
Input Signal | |
760P | 3-15 psig, 3-27 psig |
760E | 4-20 mA |
Mechanical Feedback | |
Rotary | 90 degree standard |
Linear | 1/2-inch to 6-inches, longer lengths available on request |
Cam Characterization | Equal %, Quick Opening, Linear |
Pressure Gain | 160%/% @ 60 psi supply standard, 80%/% with high temp option |
SpanAdjustable | -60% to +25% of normal span1) |
ZeroAdjustable | -10% to +60% of normal span1) |
Performance | |
Linearity: | |
760P | 0.5% of normal span1) (typical) |
760E | 0.75% of normal span1) (typical) |
Hysteresis: | |
760P | 0.75% of normal span1) (typical) |
760E | 1.0% of normal span1) (typical) |
Deadband | Less than or equal to 0.25% of span |
Repeatability | Within 0.5% of span2) |
Supply Pressure Effect | Less than 0.2% of span2) for a 5 psi change in supply pressure |

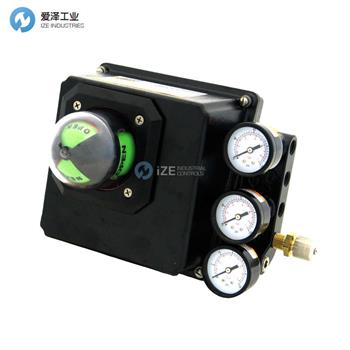

SIEMENS定位器760 P/E系列介紹
760基礎氣動單元提供分裂測距，直接或反向行動，和單或雙行動，不需要額外的部件。機械連桿和特征凸輪可以在現場更換，以配置定位器為使用的線性或旋轉執行器。主要的設計特性包括零度調整和跨度調整的非交互作用。
760系列閥門定位器包括內限位開關安裝和位置反饋裝置，無需提供環附加外殼。因此，消除了阻礙訪問主機柜的定位器的需求。
The 760 base pneumatic unit provides split ranging, direct or reverse action, and single or double action without requiring additional parts.The mechanical linkage and characterized cam can be replaced in the field to configure the positioner for use with either a linear or rotary actuator. Key design features include non-interaction of the zero and span adjustments.
Series 760 Valve Positioners include provisions for internal limit switch mounting and position feedback devices without requiring additional housings. Thus, the need tpositionersngs that impede access to the main enclosure is eliminated.

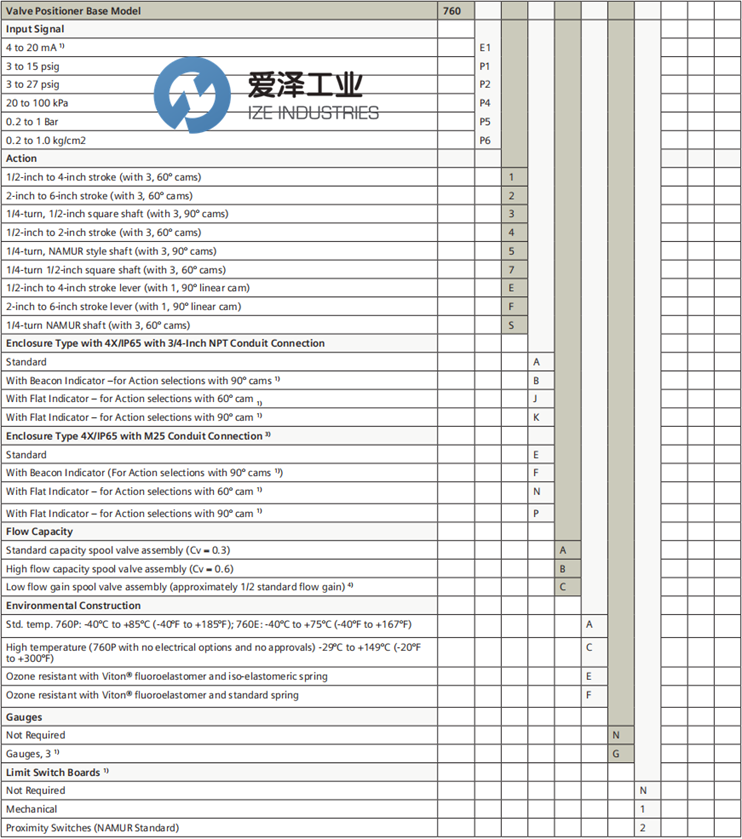

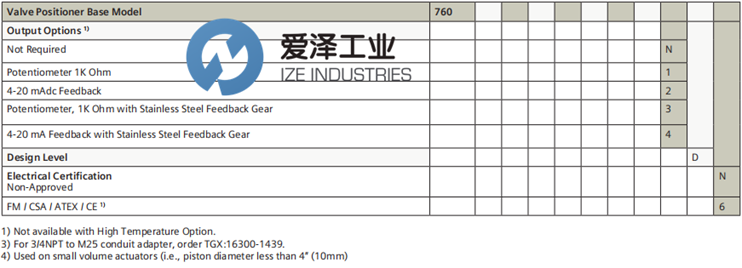

SIEMENS定位器760 P/E系列選型
SIEMENS定位器760 P/E系列其他常用型號：
SIEMENS 760E12AAAGNNB6
SIEMENS 760E15BAAGNND6
SIEMENS 760P15AAANNND6
SIEMENS 760P11AAAGNND6
SIEMENS 760P16KFANNNB4
SIEMENS 760P15BCANNND6
SIEMENS 760P11AAAGNNB6
SIEMENS 760P12AAANNND6
SIEMENS 760P21HNXGTBD6
