MONITEUR DEVICES閥位指示器AMYB系列技術參數
Nema Rating | 4, 4X, 7, 9 |
Housing / Cover | Aluminum |
Indicator Cover | Ektar |
Seals | BUNA-N |
Fasteners | Stainless Steel |
Terminal Points | 14 |
Weight | 4.25 lbs. |
Operating Temp. | -40° F to 175° F |
MONITEUR DEVICES閥位指示器Sentinel系列介紹
閥位指示器應為Moniteur型AMYB-E240/AMYB-5240/AMYB-1240。外殼應為帶有聚氨酯涂層的鋁制外殼，等級為 Nema 4、4X、7、9。視覺指示器應具有 100% 顯示變化、360° 可視性和全設定點可調節性。指示器蓋應無貼花或油漆，并用O形圈密封。
外殼應有固定蓋螺栓。外殼軸應連接到帶有內部不銹鋼鎖定環的燒結黃銅軸承座上，并使用O形環進行環保保護。開關/傳感器類型應為鎢TTL密封接近類型，額定3A - 125 VAC / 2A - 24VDC?？偣矐?yīng)包括四 (4) 個開關以及 14 個終端點。
所有開關和端子必須封閉并單獨標記以供識別。端子排必須采用角度安裝，以便于安裝。
Valve position transmitter shall be Moniteur model AMYB-E240/AMYB-5240/AMYB-1240. Enclosure shall be aluminum with a polyurethane coating and rated Nema 4, 4X, 7, 9. Visual indicator shall have 100% display change, 360° visibility and full set point adjustability. Indicator cover shall be free of decals or paint and sealed with an O-ring.
Enclosure shall have captive cover bolts. Enclosure shaft shall be attached to a sintered brass housing bearing with an internal stainless steel locking ring, environmentally protected with an O-ring. The switch/sensor type shall be Tungsten TTL Hermetically Sealed Proximity Type rated 3A - 125 VAC / 2A - 24VDC. A total of four (4) switches shall be included along with 14 terminal points.
All switches and terminals must be enclosed and individually marked for identification. Terminal strip must be angle-mounted for easier installation.

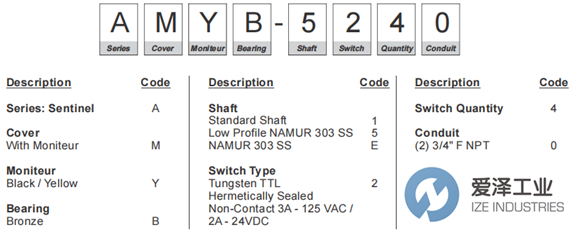

MONITEUR DEVICES閥位指示器Sentinel系列選型
MONITEUR DEVICES閥位指示器Sentinel系列其他常用型號：
MONITEUR DEVICES AMYB-E240
MONITEUR DEVICES AMYB-5240
MONITEUR DEVICES AMYB-1240
