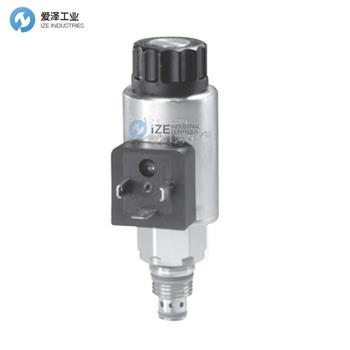

REXROTH OIL CONTROL閥KKDE系列技術技術參數
general | |
Weight | Valve：0.30 kg |
Installation position | Any |
Ambient temperature range | –40 to +110 °C |
hydraulic | |
Maximum operating pressure | 350 (at all ports) bar |
Maximum flow | 45 l/min |
Hydraulic fluid | Mineral oil (HL, HLP) according to DIN 51524; quickly biodegradable hydraulic fluids according to VDMA 24568 (see also RE 90221); HETG (rape seed oil); HEPG (polyglycols);HEES (synthetic esters); other hydraulic fluids upon request |
Hydraulic fluid temperature range | –40 to +80 °C |
Viscosity range | 4 to 500 mm2/s |
Maximum permitted degree of contamination of the hydraulic fluid - cleanliness class according to ISO 4406 (c) | Class 20/18/15 |
Load cycles | 10 million (at 350 bar) |
electrical | |
Voltage type | Direct voltage |
Supply voltage | 12 DC; 24 DC V |
Power consumption | 22 W |
Maximum coil temperature | 150 °C |
Switching time according to ISO 6403 (solenoid horizontal) | – ON：≤ 80 ms |
Maximum switching frequency | 15000 cy/h |

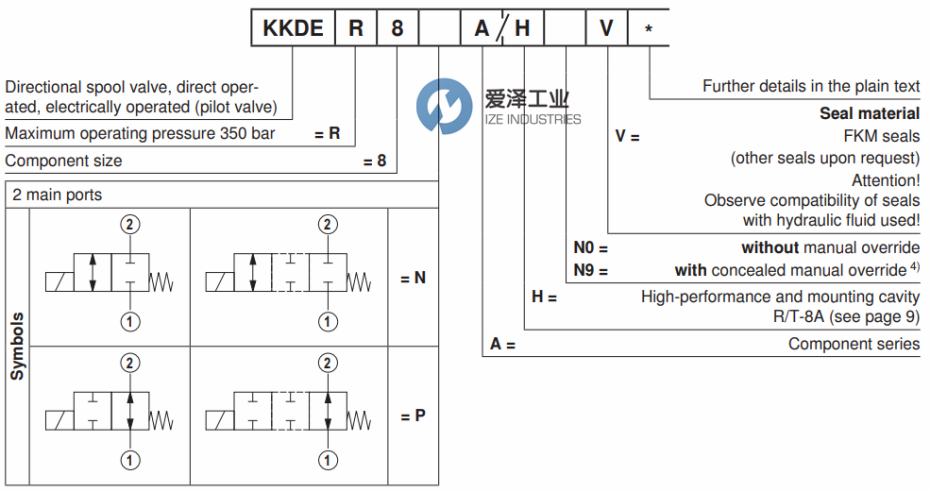

REXROTH OIL CONTROL閥KKDE系列選型
REXROTH OIL CONTROL閥KKDE系列其他常用型號：
REXROTH OIL CONTROL KKDER8NA/HN0V R901069969
REXROTH OIL CONTROL KKDER8PA/HN0V R901069973
REXROTH OIL CONTROL KKDER8NA/HN9V R901069975
REXROTH OIL CONTROL KKDER8PA/HN9V R901069978
REXROTH OIL CONTROL VALVE NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業成立于2010年，定位于向制造工業提供高端制造技術和設備。代理經營世界優質的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于REXROTH OIL CONTROL閥KKDER8PA/HN0V R901069973的疑問，請隨時與我們溝通（021-31006702）。我們將盡全力解決您的問題。
If you have any question for REXROTH OIL CONTROL products, please feel free to dial 0086-21-3100 6702/ send request email to sales@ize-industries.com / browse our website: jjxdch.cn.
REXROTH OIL CONTROL閥KKDER8PA/HN0V R901069973技術規格
