CONTROL TECHNIQUES功率單元M600-094 02000 E10技術規格

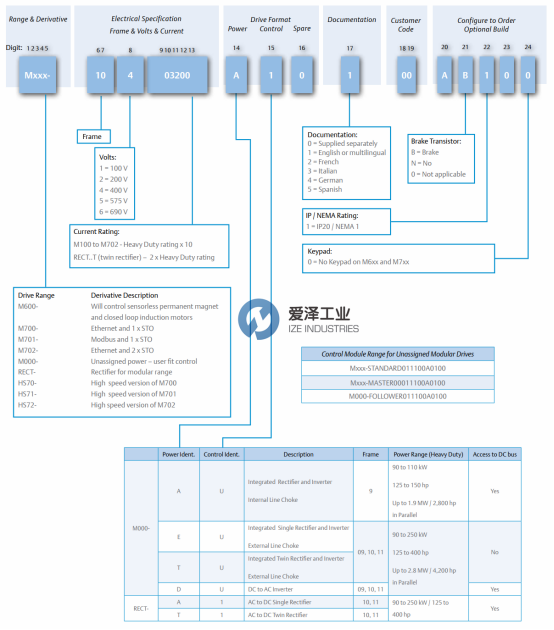

M600- Will control sensorless permanent magnet and open loop induction motors |
09 = Frame Size |
4 = 400 V |
02000=M100 to M702 - Heavy Duty rating x 10 RECT..T (twin rectifier) – 2 x Heavy Duty rating |
E=Integrated Single Rectifier and Inverter External Line Chok |
1= AC to DC Single Rectifier |

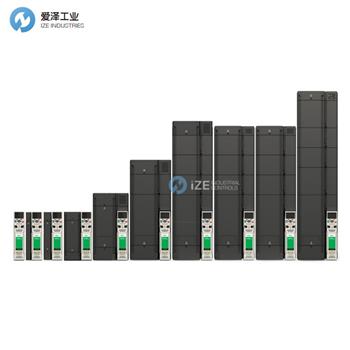

CONTROL TECHNIQUES功率單元Unidrive M系列介紹
Unidrive M的模塊化產品提供了一種構建緊湊、可靠的高功率解決方案的靈活方法。并聯在一起，Unidrive M可以控制系統中的異步和永磁電機，功率高達2.8 MW (4,200 hp)?？蚣?1是一個250 kW (400 hp)的模塊，它允許系統制造商使用最少的組件創建高功率解決方案，同時將占地面積和成本保持在最低水平。
Unidrive M模塊可以并聯成各種靈活的解決方案，以滿足所有系統需求，包括有源前端和多脈沖整流器配置。它們可由M600、M700、M701和M702控制器控制。
Unidrive M’s modular offering provides a flexible method of building compact, reliable high-power solutions. Paralleled together, Unidrive M can control asynchronous and permanent magnet motors in systems up to 2.8 MW (4,200 hp). The frame 11 is a 250 kW (400 hp) module that allows system builders to create high power solutions with the smallest number of components, keeping both footprint and costs to a minimum.
The Unidrive M modules can be paralleled into a wide range of flexible solutions to solve all system needs including Active Front End and multi-pulse rectifier configurations. They can be controlled by M600, M700, M701 and M702 controllers.
CONTROL TECHNIQUES功率單元選型
CONTROL TECHNIQUES功率單元其他常用型號：
CONTROL TECHNIQUES M600-03400078A10101AB100
CONTROL TECHNIQUES M600-MASTER00011101A010
CONTROL TECHNIQUES M600-03400031A10101AB100
CONTROL TECHNIQUES M600-STANDARD011100A0100
CONTROL TECHNIQUES M600-09501040A10101AB100
CONTROL TECHNIQUES M600-10403200E10101AB100
CONTROL TECHNIQUES M600-04200137A10101AB100
CONTROL TECHNIQUES M600-08401340A10101AB100
CONTROL TECHNIQUES M600-094 02000 E10
CONTROL TECHNIQUES Modular Drives NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業成立于2010年，定位于向制造工業提供高端制造技術和設備。代理經營世界優質的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于CONTROL TECHNIQUES功率單元M600-09402000E10的疑問，請隨時與我們溝通（021-31006702）。我們將盡全力解決您的問題。
If you have any question for CONTROL TECHNIQUES products, please feel free to dial 0086-21-3100 6702/ send request email to sales@ize-industries.com / browse our website: jjxdch.cn.
CONTROL TECHNIQUES功率單元M600-09402000E10技術參數
