DeZURIK定位器P36C技術參數
Order Code | P36C |
Air Supply (psi)* | 21-150 psi |
Linearity | < 0.50% of full scale |
Hysteresis | < 0.50% of full scale |
Repeatability | 18.8 SCFM @ 87 psi |
Accuracy | < 0.5% of full scale |
Air Consumption | 0.25% of full scale |
Air Delivery | 0.71 SCFM @ 87 psi |
Input Impedance | – |
Temperature Range | -5° to 185°F (-20° to 85°C) |
Weight | 2.4 lbs (1.1 kg) |
DeZURIK閥門定位器介紹
P36C/P36C and P41D positioners are available on valves with double-acting or DR rotary diaphragm actuators.
Span and Zero Adjustment
Calibration knobs for zero and span adjustments are color coded and marked ± for ease of use. They’re also conveniently located for easy calibration.
Split Range Output/Field Reversible
The standard cam is stainless steel. P36C/P36C positioners have one lobe for 90° full scale operation and one lobe for 90° split range or 180° full scale operation. The P41D positioner uses a three lobe cam (0-100%, 0-50% and 50-100%). Fifteen other cam options are available on request. Positioner operation can be reversed in the field by flipping the cam and reversing the ports on double-acting cylinders, and simply flipping the cam on spring-return actuators.
Sealed Housing
Both the P36C/P36C units are sealed and vented through a tapped exhaust port. The housing can easily be modified at any time for liquid drainage. Housing is die cast aluminum coated with black epoxy paint. The P41D housing is black anodized aluminum and meets NEMA 4, 4X.
P36C/P36C和P41D定位器可用于帶雙作用或DR旋轉隔膜執行器的閥門。
量程和調零
用于零位和跨度調整的校準旋鈕采用顏色編碼并標記為 ±，以便于使用。它們的位置也很方便，便于校準。
分程輸出/場可逆
標準凸輪為不銹鋼。P36C/P36C定位器有一個用于90°全量程操作的波瓣和一個用于90°分程或180°全量程操作的波瓣。P41D定位器使用三瓣凸輪（0-100%、0-50% 和 50-100%）。可應要求提供15種其他凸輪選項。通過翻轉凸輪和翻轉雙作用氣缸上的端口，以及簡單地翻轉彈簧復位執行器上的凸輪，可以在現場反轉定位器操作。
密封外殼
P36C/P36C裝置均密封并通過抽頭排氣口排氣?？呻S時輕松修改外殼以進行液體排放。外殼是涂有黑色環氧漆的壓鑄鋁。P41D外殼是黑色陽極氧化鋁，符合NEMA 4、4X。
DeZURIK閥門定位器其他常用型號：
DeZURIK P36C
DeZURIK P41C
DeZURIK P41D
DeZURIK Valve positioner NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業成立于2010年，定位于向先進制造工業提供高端制造技術和設備。代理經營世界先進的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于DeZURIK閥門定位器P36C的疑問，請隨時與我們電聯，（021-3100 6702），我們將盡全力解決您的問題。
If you have any question for DeZURIK products, please feel free to dial 0086-21-3100 6702/ send request email to sales@ize-industries.com / browse our website: jjxdch.cn.

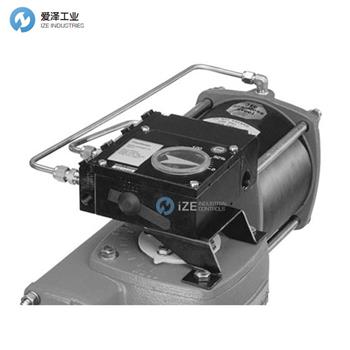

DeZURIK閥門定位器P36C介紹
