HYDAC壓力傳感器EDS3448-5-0100-000規格描述

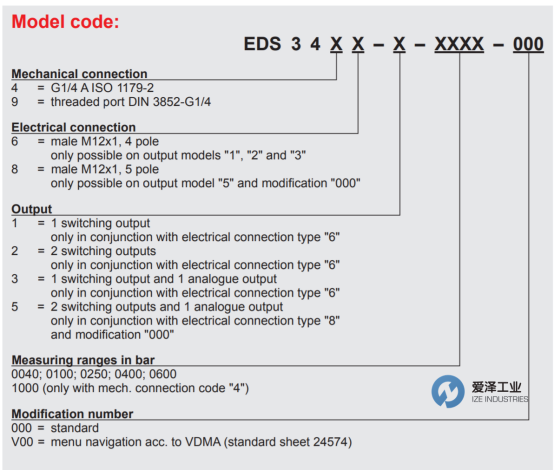

EDS 3 4 |
4 = G1/4 A ISO 1179-2 |
8 = male M12x1, 5 pole only possible on output model "5" and modification "000" |
5 = 2 switching outputs and 1 analogue output only in conjunction with electrical connection type "8" and modification "000" |
0100 = Measuring ranges in bar |
000 = standard |
HYDAC壓力傳感器EDS3400系列描述及選型
Standard; in conformance with DESINA?; Menu navigation in accordance with VDMA; with front-flush diaphragm

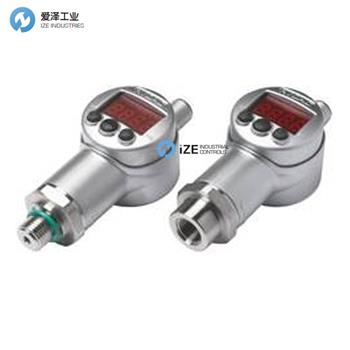

The EDS 3400 is a compact electronic pressure switch with integrated digital display for relative pressure measurement in the high-pressure range. It is provided for this purpose with a stainless steel measuring cell with thin-film DMS. The device has 1 or 2 switching outputs and one reversible analogue output signal (4 ... 20 mA or 0 ... 10V). A special feature of the EDS 3400 is the option of rotating the display in 2 axes. The device can be optimally aligned in practically any random installation position, which means that additional costs for the mechanical alignment adapter which is usually required are dispensed with. The 4-character digital display can show the pressure in bar, psi or MPa. It is possible for the user to select between the different units. With this function, the device re-scales the switching settings automatically in accordance with the new unit. In addition, the EDS 3400 is also available in a variant which conforms to DESINA?. The variant with the front-flush diaphragm was specially developed for applications in which the media used could lead to a blockage, gumming-up or freezing of a standard pressure connection. The main applications of the EDS 3400 are to be found primarily in hydraulics, pneumatics and in refrigeration and air-conditioning technology. Further applications include processes where the medium changes frequently and any residues could cause mixing or contamination of the media.
1 or 2 PNP transistor switch outputs, up to 1.2 A load per output
Accuracy ±1% FS
Optional reversible analogue output (4 ... 20 mA / 0 ... 10V)
4-character digital display
Capable of optimum alignment through rotational capability in two axes
Selection of value display in bar, psi or MPa
Simple handling through key programming
Switching points and reset hysteresis can be adjusted independently of one another
Many helpful additional functions
Option of terminal assignment with diagnostics function in conformance with DESINA?
Optional with front-flush diaphragm
Optional with menu navigation in accordance with VDMA (unit sheet VDMA 24574-1)
標準;符合 DESINA?；符合 VDMA 的菜單導航；帶前平隔膜
EDS 3400 是一款緊湊型電子壓力開關，帶有集成數字顯示屏，用于高壓范圍內的相對壓力測量。為此，它配備了帶有薄膜 DMS 的不銹鋼測量池。該設備有 1 或 2 個開關輸出和一個可逆模擬輸出信號（4 ... 20 mA 或 0 ... 10V）。 EDS 3400 的一個特殊功能是可以選擇在 2 軸上旋轉顯示器。該設備幾乎可以在任何隨機安裝位置進行最佳對齊，這意味著通常需要的機械對齊適配器的額外成本被免除。 4 位數字顯示屏可以以 bar、psi 或 MPa 為單位顯示壓力。用戶可以在不同的單位之間進行選擇。使用此功能，設備會根據新單位自動重新調整開關設置。此外，EDS 3400 還提供符合 DESINA? 的變體。帶有前平隔膜的型號專為使用的介質可能導致標準壓力連接堵塞、粘連或凍結的應用而開發。 EDS 3400 的主要應用主要是液壓、氣動以及制冷和空調技術。進一步的應用包括介質頻繁變化且任何殘留物都可能導致介質混合或污染的過程。
1 或 2 個 PNP 晶體管開關輸出，每個輸出高達 1.2 A 負載
精度 ±1% FS
可選的可逆模擬輸出（4 ... 20 mA / 0 ... 10V）
4位數字顯示
能夠通過兩個軸的旋轉能力實現最佳對準
選擇以 bar、psi 或 MPa 為單位的值顯示
通過按鍵編程簡單處理
開關點和復位滯后可以相互獨立調整
許多有用的附加功能
具有符合 DESINA? 的診斷功能的端子分配選項
可選配前平隔膜
可選的菜單導航符合 VDMA（單位表 VDMA 24574-1）
HYDAC壓力傳感器EDS3400系列其他常用型號：
HYDAC EDS 3448-1-0250-D00 908405
HYDAC EDS 3448-5-0040-000 908159
HYDAC EDS 3448-5-0100-000 908162
HYDAC EDS 3448-5-0160-000 920644
HYDAC EDS 3448-5-0250-000 908166
HYDAC EDS 3448-5-0400-000 908001
HYDAC EDS 3448-5-0600-000 908172
