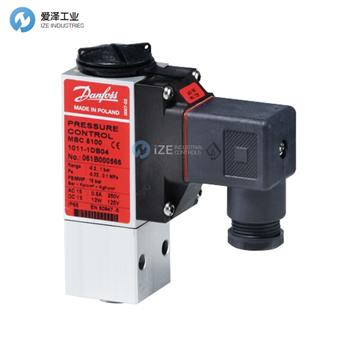

DANFOSS壓力開關MBC5000 1011-1CB04技術規格
Product details | |
Gross weight | 0.28 kg |
Net weight | 0.19 kg |
Alarm Signal | Falling |
Ambient temperature range [°C] [Max] | 85 °C |
Ambient temperature range [°C] [Min] | -40 °C |
Ambient temperature range [°F] [Max] | 185 °F |
Ambient temperature range [°F] [Min] | -40 °F |
Approval | CCC |
Burst pressure [bar] | 30 bar |
Contact function | SPDT |
Contact rating | AC15=0.5 A, 250 V |
Diff.@Max. range setting [bar] | 0.45 bar |
Diff.@Min. range setting [bar] | 0.3 bar |
Electrical conn. Male/Female | Female |
Electrical connection | DIN-plug |
Electrical connection standard | EN 175301-803-A |
Electrical spec. standard | EN 60947-5 |
Enclosure rating IP | IP65 |
DANFOSS壓力開關MBC系列介紹
MBC壓力開關用于空間和可靠性是最重要特征的工業和船舶應用中。
MBC是緊湊型壓力開關，根據我們的模塊設計而設計，可以在船上機房已知的惡劣條件下生存。
MBC具有很高的抗振性，MBC 5100具有所有通用的船舶認證。固定的，低差的壓力確保了對臨界壓力的精確監控。
MBC pressure switches are used in industrial and marine applications where space and reliability are the most important features.
MBCs are compact pressure switches, designed according to our block design to survive in the harsh conditions known from machine rooms onboard ships.
MBCs have high vibration resistance and MBC 5100 features all common marine approvals.The fixed, but low differential guarantees accurate monitoring of critical pressures.
DANFOSS壓力開關MBC系列其他常用型號：
DANFOSS 1011-1DB04
DANFOSS 1211-1DB04
DANFOSS 1411-1DB04
DANFOSS 1411-1CB04
DANFOSS 2011-1DB04
DANFOSS 2211-1DB04
DANFOSS 3421-1DB04
DANFOSS 2031-1DB04
DANFOSS 2231-1DB04
DANFOSS 2431-1DB04
DANFOSS 3231-1DB04
DANFOSS 3331-1DB04
DANFOSS 3641-1DB04
DANFOSS 4241-1DB04
DANFOSS 5251-1CB04
DANFOSS 5451-1CB04
DANFOSS 5651-1CB04
