DANFOSS壓力變送器MBS3000 060G1125技術參數
Product details | |
Gross weight | 0.17 kg |
Net weight | 0.15 kg |
EAN | 5702423084180 |
+ supply | Pin 1 |
- common | Pin 2 |
Accuracy, max. +/- FS [%] | 0.01 |
Accuracy, typical +/- FS [%] | 0.005 |
Adj. zero point and span | No |
Ambient temperature range [°C] [Max] | 85 °C |
Ambient temperature range [°C] [Min] | -40 °C |
Ambient temperature range [°F] [Max] | 185 °F |
Ambient temperature range [°F] [Min] | -40 °F |
Approval | ATEX |
Approval comments | ATEX Ex ec IIA T4 Gc |
Compensated temp. range [°C] [Max] | 80 °C |
Compensated temp. range [°C] [Min] | 0 °C |
Compensated temp. range [°F] [Max] | 176 °F |
Compensated temp. range [°F] [Min] | 32 °F |
Electrical conn. Male/Female | Male and Female |
Electrical connection | DIN-plug |
Electrical connection size | Pg 9 |
Electrical connection standard | EN 175301-803-A |
Enclosure rating IP | IP65 |
Flush diaphragm | No |
High Clipping Level | 22.4 |
Identical product | 060G4079 |
International Article Number | 5702423084180 |
Intrinsically safe | No |
Low Clipping Level | 3.6 |
Medium temperature range [°C] [Max] | 85 °C |
Medium temperature range [°C] [Min] | -40 °C |
Medium temperature range [°F] [Max] | 185 °F |
Medium temperature range [°F] [Min] | -40 °F |
Non-linearity BFSL ±FS [%] | 0.005 |
Output signal | Current |
Output signal [mA] [Max] | 20 mA |
Output signal [mA] [Min] | 4 mA |
Overload pressure max. [bar] | 60 bar |
Overload pressure max. [psi] | 870 psi |
Packing format | Multi pack |
Pressure connection HEX [mm] | 27 mm |
Pressure connection size | 1/4 |
Pressure connection standard | EN 837 |
Pressure connection type | G |
Pressure Male/Female | Male |
Pressure range [bar] [Max] | 10 bar |
Pressure range [bar] [Min] | 0 bar |
Pressure range [psi] [Max] | 145.04 psi |
Pressure range [psi] [Min] | 0 psi |
Pressure reference | Gauge (relative) |
Product group | Sensors |
Product name | Pressure transmitter |
Pulse-snubber | No |
Quantity per packing format | 14 pc |
REACH Candidate List substances >0.1% | Lead (CAS no. 7439-92-1) |
Response time max. [ms] | 4 ms |
Specification key | MBS 3000-2011-A1AB04-0 |
Supply voltage [V] DC [Max] | 32 V |
Supply voltage [V] DC [Min] | 9 V |
Type | MBS 3000 |

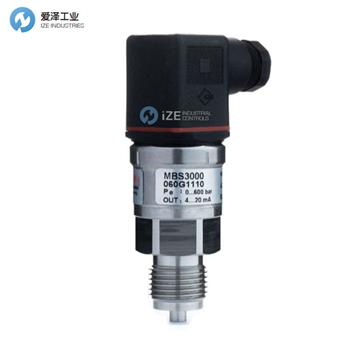

DANFOSS壓力變送器MBS3000 060G1125產品介紹
壓力變送器，MBS 3000，0.00 bar - 10.00 bar，0.00 psi - 145.04 psi
壓力單位參考：表壓（相對），
輸出信號：電流，
電氣連接：DIN 插頭，
壓力連接類型：G，
壓力連接尺寸：1/4
Pressure transmitter, MBS 3000, 0.00 bar - 10.00 bar, 0.00 psi - 145.04 psi
Pressure unit reference: Gauge (relative),
Output signal: Current,
Electrical connection: DIN-plug,
Pressure connection type: G,
Pressure connection size: 1/4

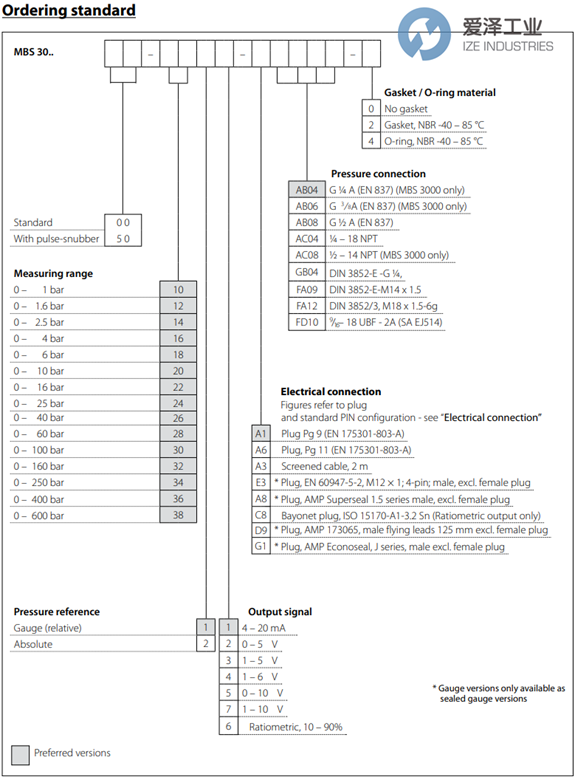

DANFOSS壓力變送器MBS30系列選型
DANFOSS壓力變送器MBS3000系列其他常用型號：
DANFOSS MBS3000 060G1141
DANFOSS MBS3000 060G1140
DANFOSS MBS3000 060G1137
DANFOSS MBS3000 060G1136
DANFOSS MBS3000 060G1135
DANFOSS MBS3000 060G1133
DANFOSS MBS3000 060G1125
DANFOSS MBS3000 060G1124
DANFOSS MBS3000 060G1123
DANFOSS MBS3000 060G1122
DANFOSS MBS3000 060G1113
DANFOSS MBS3000 060G1112
DANFOSS MBS3000 060G1111
DANFOSS MBS3000 060G1110
DANFOSS MBS3000 060G1109
DANFOSS MBS3000 060G1107
DANFOSS MBS3000 060G1106
DANFOSS MBS3000 060G1105
DANFOSS MBS3000 060G1104
DANFOSS MBS3000 060G1102
