HYDAC壓力傳感器EDS348-5-400-000規格描述

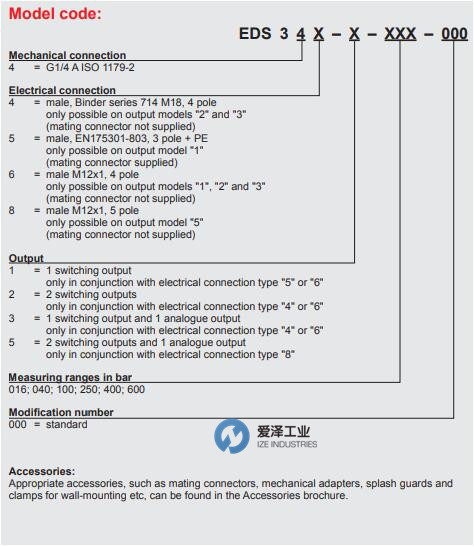

EDS348-5-400-000 |
4 = G1/4 A ISO 1179-2 |
8 = male M12x1, 5 pole only possible on output model "5" (mating connector not supplied) |
5 = 2 switching outputs and 1 analogue output only in conjunction with electrical connection type "8" |
400=Measuring ranges in bar |
000 = standard |
HYDAC壓力傳感器EDS300系列描述及選型

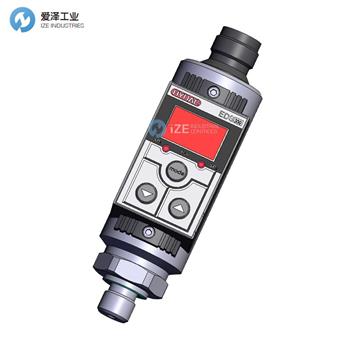

The EDS 300 is a compact, electronic pressure switch with integrated digital display. The integrated pressure sensor is based on a measurement cell with thin-fi lm strain gauge on a stainless steel membrane. Four different output models are available: with one switch point or with two switch points and both models can also have an additional analogue output signal 4 .. 20 mA.
The switch points and the associated hystereses can be adjusted using the key pad. For optimum adaptation to a particular application, the instrument has many additional adjustment parameters, e.g. switching delay times, N/O / N/C function of the outputs.
The main applications of the EDS 300 are to indicate pressures and limits in hydraulics and pneumatics and anywhere where high switching frequency or constant switching accuracy would overburden a mechanical pressure switch.
EDS 300是帶有集成數字顯示的緊湊型電子壓力開關。集成的壓力傳感器基于在不銹鋼膜上帶有薄膜應變計的測量單元。共有四種不同的輸出模型：具有一個開關點或具有兩個開關點，并且兩個模型還可以具有附加的模擬輸出信號4 .. 20 mA。
開關點和相關的磁滯可以使用鍵盤進行調整。為了最佳地適應特定應用，該儀器具有許多附加的調節參數，例如 開關延遲時間，輸出的N / O / N / C功能。
EDS 300的主要應用是顯示液壓和氣動中的壓力和極限，以及高開關頻率或恒定開關精度會使機械壓力開關超負荷的任何地方。
HYDAC壓力傳感器EDS300系列其他常用型號：
HYDAC EDS 348-5-006-000
HYDAC EDS 348-5-010-000
HYDAC EDS 348-5-016-000
HYDAC EDS 348-5-040-000
HYDAC EDS 348-5-100-000
HYDAC EDS 348-5-250-000
HYDAC EDS 348-5-400-000
HYDAC EDS 348-5-600-000
