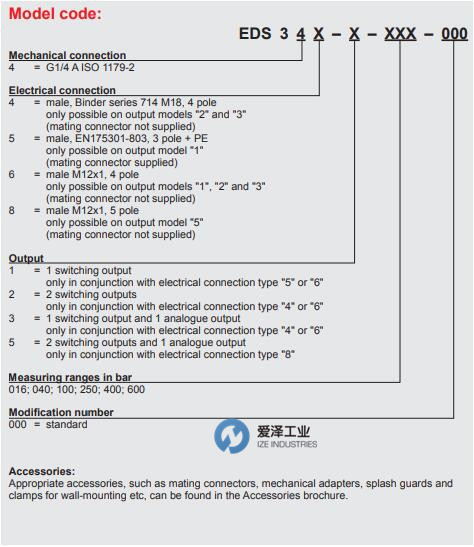

HYDAC壓力傳感器EDS344-2-016-000規格描述
EDS 3 |
4 = G1/4 A ISO 1179-2 |
4 = male, Binder series 714 M18, 4 pole only possible on output models "2" and "3" (mating connector not supplied) |
2 = 2 switching outputs only in conjunction with electrical connection type "4" or "6" |
016=Measuring ranges in bar |
000 = standard |
HYDAC壓力傳感器EDS300系列描述及選型

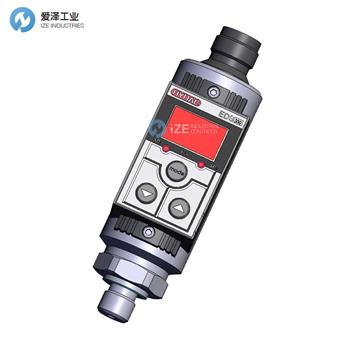

The EDS 300 is a compact, electronic pressure switch with integrated digital display. The integrated pressure sensor is based on a measurement cell with thin-fi lm strain gauge on a stainless steel membrane. Four different output models are available: with one switch point or with two switch points and both models can also have an additional analogue output signal 4 .. 20 mA.
The switch points and the associated hystereses can be adjusted using the key pad. For optimum adaptation to a particular application, the instrument has many additional adjustment parameters, e.g. switching delay times, N/O / N/C function of the outputs.
The main applications of the EDS 300 are to indicate pressures and limits in hydraulics and pneumatics and anywhere where high switching frequency or constant switching accuracy would overburden a mechanical pressure switch.
EDS 300是帶有集成數字顯示的緊湊型電子壓力開關。 集成的壓力傳感器基于在不銹鋼膜上帶有薄膜應變計的測量單元。 共有四種不同的輸出模型：具有一個開關點或具有兩個開關點，并且兩個模型還可以具有附加的模擬輸出信號4 .. 20 mA。
開關點和相關的磁滯可以使用鍵盤進行調整。 為了最佳地適應特定應用，該儀器具有許多附加的調節參數，例如 開關延遲時間，輸出的N / O / N / C功能。
EDS 300的主要應用是顯示液壓和氣動中的壓力和極限，以及高開關頻率或恒定開關精度會使機械壓力開關超負荷的任何地方。
HYDAC壓力傳感器EDS300系列其他常用型號：
HYDAC EDS 344-3-006-000
HYDAC EDS 344-3-010-000
HYDAC EDS 344-3-016-000
HYDAC EDS 344-3-040-000
HYDAC EDS 344-3-100-000
HYDAC EDS 344-3-250-000
HYDAC EDS 344-3-400-000
HYDAC EDS 344-3-600-000
HYDAC Temperature Sensor NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業成立于2010年，定位于向先進制造工業提供高端制造技術和設備。代理經營世界先進的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于HYDAC壓力傳感器EDS344-2-016-000的疑問，請隨時與我們溝通（021-31006702）。我們將盡全力解決您的問題。
If you have any question for HYDAC products, please feel free to dial 0086-21-3100 6702/ send request email to sales@ize-industries.com / browse our website: jjxdch.cn.
