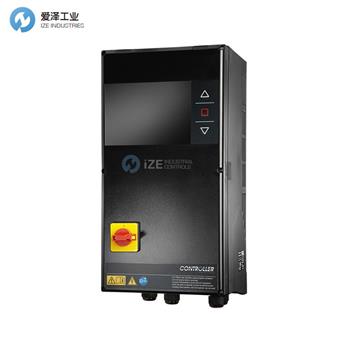

FEIG門控器TST FU3F系列技術參數
TECHNICAL DATA | |
TST FU3F-AH | (2.2 kW, 5 A) |
Dimensions (W x H x D) | 210 x 420 x 200 mm |
Housing | Plastic |
Power supply | 3~200-480 VAC +/-10% / 50-60 Hz |
Motor connection | for 3~ asynchronous motors up to 2.2 kW / 5 A resp. 4.0 kW / 10 A resp. 5.0 kW / 12 A, with high overload resistance for doors |
Operating frequencies | 6-200 Hz (separate adjustable frequency ramps for all door operating modes) |
Control voltage | 24 VDC, safe |
Supply external devices | 24 VDC +/-5% / 3.5 A short-circuit-proof |
Drive output | For drives up to 2.2 kW / 4 kW / 5 kW at 3(N)~/2~400 V motor current at 100% / 60% duty cycle and 40°C / 50°C environmental temperature: 5 A / 10 A / 12 A |
Temperature range | Operation -20°C up to 50°C |
Humidity | up to 95%, not condensing |
Noise emission | < 20 dB (A) |
Protection type | IP65 (in housing) |
Protection class | Protection class I |
Weight | approx. 5 kg |
FEIG門控器TST FU3F系列介紹
在大型塑料外殼（IP65）中或作為板可用
更換框架上的電子裝置可在各種外殼中可變安裝（例如食品行業的不銹鋼外殼）
恒定的接線圖（即插即用），易于安裝在每個外殼中
2個用于無線電和環路檢測器的插槽
符合EN 13849的帶監控的安全24 V制動控制
適用于所有門類型
高達5 kW的交流電動機的運行
In large plastic housing (IP65) or as board available
Electronics on change frame for variable mounting in various housings(e.g. stainless steel housing for food industry)
Easy installation in each housing by constant connection diagram (Plug & Play)
2 slots for radio and loop detector
Safe 24 V brake control with monitoring according to EN 13849
Suitable for all door types
Operation of AC motors up to 5 kW
FEIG門控器TST FU3F系列其他常用型號：
FEIG TST FU3F-AH
FEIG TST FU3F-APR
FEIG TST FU3F-CH
FEIG TST FU3F-CPR
FEIG TST FU3F-FH
FEIG TST FU3F-FPR
