ES0200.U2A06A.22K0停產，替代型號FS0200.NU60CWALT.YD22SNA.00XX
EL-O-MATIC執行機構F系列產品參數
Specifications | |
Power Source | Pneumatic |
Product Type | Pneumatic Rack and Pinion Actuator |
Actuation | Quarter-turn |
Certifications | ROHS3, REACH, ATEX, PED and Machinery Directives, SIL3, IP66/67 |
Control Type | On/Off, Positioning, Modulating, ESD |
Valve Type | Ball, butterfly, plug and any other quarter turn application |
Operating Temperature | Standard -20°C to +80°C (-4°F to +176°F). Optional high and low temperature options |
Torque | 13 sizes: 12 Nm to 4100 Nm (106 lbf.in to 36,474 lbf.in) |
Operating Pressure | up to 8.3 bar / 120 psi |

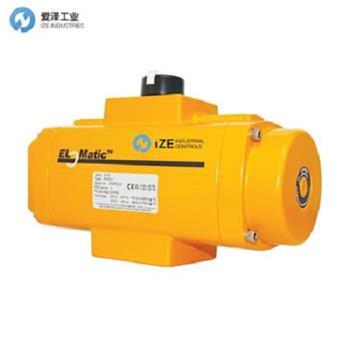

EL-O-MATIC執行機構ES0200.U2A06A.22K0產品介紹
EL-O-Matic F系列是齒輪齒條式執行器，有13種尺寸，有彈簧復位或雙作用型號。執行器的“即插即用”設計為各種直角回轉閥應用提供了最佳性能。EL-O-matic F系列為粉末涂層，并具有特殊的高耐腐蝕鋁小齒輪設計和不銹鋼緊固件，從而實現了持久耐用的執行器設計。
具有13種尺寸的單作用和雙作用執行器，范圍從12 Nm至4100 Nm（106至36,474 lbf.in）。
適合并忘記堅固，耐腐蝕的設計。
易于安裝的執行器，忠實運行，可提供多年的可靠性能。
硬質陽極氧化高級鋁（7075 T6）小齒輪可提供耐腐蝕性，高強度和輕質結構的最佳組合，并提供防電腐蝕的保護。
模塊化結構可輕松改變彈簧或改變動作。
雙閥法蘭鉆孔模式和可互換的驅動插件可實現直接安裝，并減少了對閥安裝套件的需求。
符合NAMUR接口標準允許執行器與各種附件一起包裝。
雙沖程調節功能可輕松設置閥門沖程，從而防止閥門過早失效。
具有標準組件的結構，可按各種常用配置進行交付。
The EL-O-Matic F-series is a rack & pinion actuator, available in 13 sizes as spring return or double acting models. The actuator's “Fit & Forget“ design provides the optimum performance for a wide range of quarter turn valve applications. The EL-O-matic F-series are powder coated and comes with a special high corrosion resistant aluminum pinion design and stainless steel fasteners, resulting in a long lasting durable actuator design.
With single and double acting Actuators in 13 sizes, ranging from 12 Nm to 4100 Nm (106 to 36,474 lbf.in).
Fit and Forget robust, corrosion resistance design.
Easy to install actuator which functions faithfully giving many years of dependable performance.
The hard anodized high grade aluminum (7075 T6) pinion, provides the best combination of corrosion resistance, high strength and a lightweight construction as well as providing protection against galvanic corrosion.
Modular construction allows easy spring or action changes.
Dual valve flange drilling patterns and interchangeable drive inserts allows for direct mounting capability and reduces the need for valve mounting kits.
Compliance to NAMUR interface standard allows the actuator to be packaged with a wide range of accessories.
Dual Stroke Adjustment allows easy setting of the valve stroke which prevents premature valve failures.
Construction with standard components for delivery in a variety of frequently used configurations.

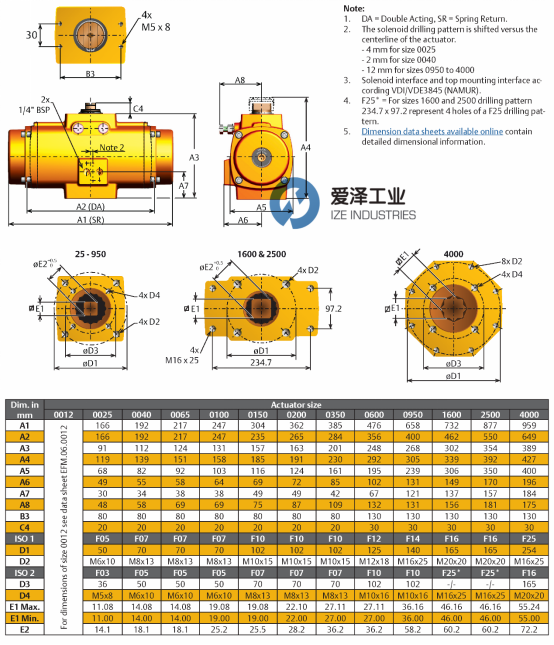

尺寸選型：
EL-O-MATIC執行機構F系列其他常見型號：
EL-O-MATIC FD0012
EL-O-MATIC FD0025
EL-O-MATIC FD0040
EL-O-MATIC FD0065
EL-O-MATIC FD0100
EL-O-MATIC FD0150
EL-O-MATIC FD0200
EL-O-MATIC FD0350
EL-O-MATIC FD0600
EL-O-MATIC FD0950
EL-O-MATIC FD1600
EL-O-MATIC FD2500
EL-O-MATIC Rack and Pinion Valve Actuator NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業成立于2010年，定位于向先進制造工業提供高端制造技術和設備。代理經營世界先進的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于EL-O-MATIC執行機構ES0200.U2A06A.22K0的疑問，請隨時與我們溝通（021-31006702）。我們將盡全力解決您的問題。
If you have any question for EL-O-MATIC products, please feel free to dial 0086-21-3100 6702/ send request email to sales@ize-industries.com / browse our website:jjxdch.cn.
EL-O-MATIC執行機構ES0200.U2A06A.22K0產品參數
